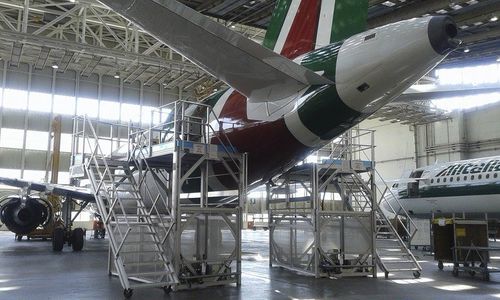

Cargo hold access platform

movable

The platform is made to lift operators to the level of A330/B777 aircrafts’ cargo gates for maintenance and assistance operations. It’s made up of a main frame and a mobile frame sliding on it, both in aluminum profiles. The main frame has 4 wheels for transport and positioning. Both hydraulic and electric circuits find space inside of it. Two hydraulic cylinders lift up the mobile frame and thanks to a flow divider, make it keep horizontal position regardless the weights position on the planking level. The access to the planking level is possible thanks to a variable slope stairway that follows the lift. A towbar is provided for longer moving. Planking level max height - 3,50 m Max load - 500 kg Max n. persons - 4 Max wind speed admitted - 20,58 m/s Max slope admitted - 0° Max voltage - 380 V Max pressure - 120 bar Emergency power - Hand pump Equivalent continuous A-weighted sound pressure level - < 70 dBA Max towing speed - 3 km/h
