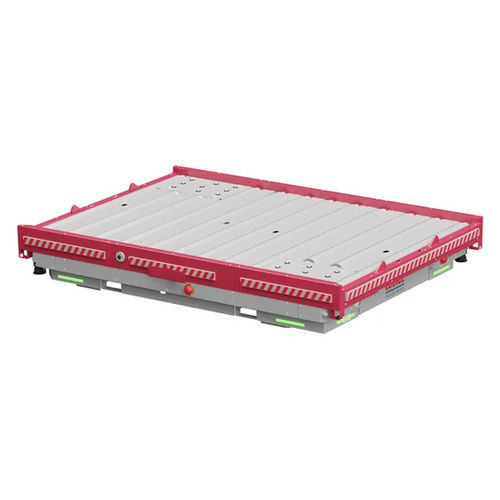

AGV transfer vehicle

automatedfor airport

Overview
Lödige automated guided vehicles (AGVs) are designed for efficient intra-terminal transport of Unit Load Devices (ULDs) in air cargo terminals. They move ULDs between import/export zones, build & break stations and storage decks at the standard air cargo conveying height to streamline flows and reduce manual handling.

Key concept
Lödige AGVs perform autonomous transport of 10 ft ULDs in NEP or WEP orientation at a transfer height of 508 mm. Navigation is based on natural navigation and laser scanners, with lithium-ion batteries and inductive charging enabling continuous operation and accurate position control.

Benefits

• Dynamic routing via WMS/fleet management integration
• Handles 5 ft, 10 ft and 15 ft ULDs (up to 6,800 kg)
• Enables horizontal and vertical transfers to/from racks and docks
• No physical guides required thanks to natural navigation
• Omnidirectional drive for tight terminal maneuvers
• Inductive opportunity charging for extended availability
• ±10 mm stop precision for exact alignment with conveyors and racks
• Reduces manual handling steps and ULD damage risk
• Supports scalable layouts without fixed conveyors

Features / Options

• Interfaces to standard air cargo equipment: dollies, cargo pallet movers and handling areas
• Flexible connection between different stationary conveyor systems
• Compact footprint with optimized drive unit arrangement
• Operational safety features for personnel and freight
• Energy management and multi-vehicle fleets for permanent availability
• Full integration with warehouse management (Lödige Cargo Professional)
• Loading and conveying at air cargo standard height of 508 mm

Technical data (summary)

• 5 ft variant
  • Dimensions (L×W×H): 3,075 × 1,730 × 570 mm
  • Deck orientation: Wide Edge (WEP)
  • Transfer height: 508 mm
  • Load capacity: 1,588 kg
  • Deadweight: 1,400 kg
  • Drive: Omnidirectional
  • Max travel speed: 1.5 m/s (up to 3.0 m/s)
  • Max acceleration: 0.3 m/s²
  • Onboard conveyor: Roller conveyor (0.3 m/s)
  • Battery: Li‑Ion, up to 220 Ah
  • Charging: Inductive (opportunity charging)
  • Charging time (20%-80%): ~1.5 h
  • Navigation: Natural navigation; laser scanners
  • Stop precision: ±10 mm
  • Network: WiFi
  • Safety: 2× Lidar, LED indicators, 2× emergency stops, 2× plate stops, 2× 360° PTZ cameras; compliant with DIN EN ISO 3691-4, DIN EN ISO 13849, Machinery Directive 2006/42/EC
• 10 ft variant
  • Dimensions (NEP): 3,790 × 2,790 × 570 mm
  • Dimensions (WEP): 3,380 × 2,900 × 558 mm
  • Deck orientation: NEP & WEP
  • Transfer height: 508 mm
  • Load capacity: up to 6,800 kg
  • Deadweight: 3,300 kg
  • Drive: Omnidirectional
  • Max travel speed: 1.5 m/s (up to 3.0 m/s)
  • Max acceleration: 0.3 m/s²
  • Onboard conveyor: Roller conveyor (0.3 m/s)
  • Battery: Li‑Ion, up to 220 Ah
  • Charging: Inductive (opportunity charging)
  • Charging time (20%-80%): ~1.5 h
  • Navigation: Natural navigation; laser scanners
  • Stop precision: ±10 mm
  • Network: WiFi
  • Safety: 2× Lidar, LED indicators, 4× emergency stops, 4× plate stops (NEP), 2× 360° PTZ cameras; compliant with DIN EN ISO 3691-4, DIN EN ISO 13849, Machinery Directive 2006/42/EC

Applications

• Import/export handling
• Build & break workstations
• Storage deck and rack areas
• Truck docks and FlexLoader transfer points

How they operate
AGVs run without physical guides using natural navigation and laser-based obstacle detection. Routes and tasks are assigned dynamically via the WMS or fleet manager and centrally coordinated to optimize terminal throughput and reduce dwell times.

Technical characteristics

• Model: AGV (Automated Guided Vehicle) by Lödige
• Supported ULD sizes: 5 ft, 10 ft, 15 ft
• Maximum load capacity: up to 6,800 kg (10 ft)
• Transfer/standard conveying height: 508 mm
• Drive: Omnidirectional
• Max travel speed: up to 3.0 m/s (standard 1.5 m/s)
• Acceleration: 0.3 m/s²
• Onboard conveyor: Roller conveyor (0.3 m/s)
• Battery: Li‑Ion up to 220 Ah; inductive opportunity charging; 20%-80% ~1.5 h
• Navigation: Natural navigation with WiFi connectivity
• Stop precision: ±10 mm
• Safety: Lidar, LED indicators, emergency stops, plate stops, 360° PTZ cameras; standards compliant
