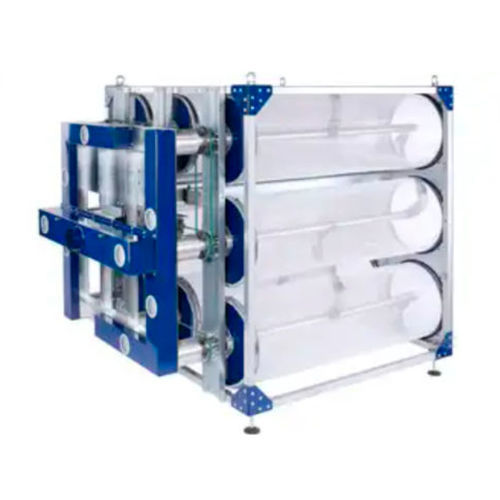

Air filter CDF series

drum

Product overview
The LTG Compact Drum Filter CDF is designed for fine filtration of dust from the primary air stream. Air passes through stationary filter drums from the inside to the outside and is continuously extracted by suction nozzles that contact the filter surface. The nozzles perform a rotational and superimposed translational movement to ensure complete extraction of the drum surface. The separated dust is conveyed by a secondary-circuit fan to a separator and removed from the process. All functional components and drive parts are located in the housing on the clean-gas side for improved accessibility and operational safety.

Advantages

• Regenerative filter unit
• High power density with large filter surface load
• No pressure fluctuations in the extraction system due to continuous cleaning
• Efficient filtration and power density thanks to selected filter media
• Long service life of the filter media
• Easy replacement of the filter media
• Lower maintenance needs since drive elements are on the clean-gas side
• Space-saving installation due to compact design
• Frame construction for structural stability
• Antistatic and ATEX versions available
• High-temperature version (CDF-t) available

Technical data (table)

• Type | Conveying Media Temperature [°C] | Filter Surface [m²] | Diameter of Filter Disc [mm] | Air Volume [m³/h] | Drive Output [kW]
• CDF-2 | +5 to +60 | 5 | 550 | 9 000 | 2×0,12
• CDF-4 | +5 to +60 | 10 | 550 | 18 000 | 2×0,12
• CDF-8 | +5 to +60 | 16 | 450 | 30 000 | 2×0,12

Additional technical notes

• Multiple CDF units can be arranged modularly side-by-side and stacked to meet higher air volume requirements.
• As part of the modular LTG filter system, the CDF can be combined with the TVM-CDF pre-filter.
• A high-temperature CDF-t version is available for elevated process temperatures.

Technical specifications

• Brand: LTG
• Commercial designation / model: CompactDrum Filter CDF
• Type variants: CDF-2, CDF-4, CDF-8
• Conveying media temperature range: +5 to +60 °C
• Filter surface: CDF-2 = 5 m², CDF-4 = 10 m², CDF-8 = 16 m²
• Diameter of filter disc: CDF-2 = 550 mm, CDF-4 = 550 mm, CDF-8 = 450 mm
• Air volume capacity: CDF-2 = 9 000 m³/h, CDF-4 = 18 000 m³/h, CDF-8 = 30 000 m³/h
• Drive output: 2×0,12 kW (for listed types)
• Filter concept: Regenerative unit with continuous cleaning by rotating/translating suction nozzles
• Construction: All drive and functional components located on the clean-gas side for accessibility and safety
• Versions available: Antistatic, ATEX, high-temperature (CDF-t)
• Installation: Modular arrangement possible; combinable with TVM-CDF pre-filter
• Maintenance: Long service life of filter media; easy replacement; low maintenance needs
