Aeronautical wind tunnel VRSF/VAF

Product overview

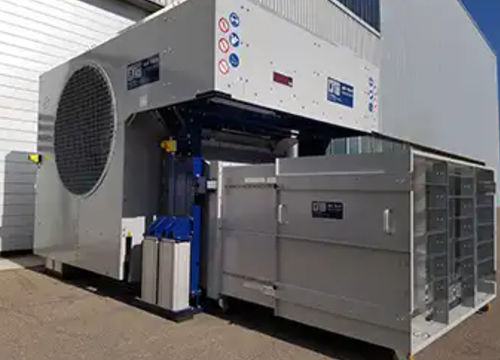

LTG SC03 Fahrtwind-Simulators provide homogeneous air distribution across a 1.7 m² discharge area, meeting CFR § 1066 requirements for SC03 tests up to 96 km/h (60 mph). Stationary and mobile configurations support various test-cell layouts and constraints, with versions capable of operation at ambient temperatures down to -40 °C. Optional attachment nozzles increase discharge velocity for WLTP applications up to approximately 135 km/h.

Features

• Homogeneous air distribution over a 1.7 m² discharge area (CFR § 1066 compliance for SC03 up to 96 km/h / 60 mph)
• Available in stationary and mobile configurations to fit different test-cell layouts
• Wide ambient operating ranges (down to -40 °C for selected types)
• Optional attachment nozzle to achieve higher discharge velocities for WLTP testing (up to ~135 km/h)

Technical data

• VRSF 1120 E4030 — Average blow-out speed: 96 km/h (60 mph); Blow-out cross section HxW: 1000 × 1700 mm; Blow-out height above bottom: 150–450 mm; Conveyed volume flow: 163,200 m³/h; Ambient temperature: -40 to +50 °C; Requirement: SC03, CFR
• VRSF 1120 E4030 (same family) — 137 km/h (85 mph); 800 × 1000 mm; 200–500 mm; 109,600 m³/h; -40 to +50 °C; CFR
• VRSF 1120 E4030 (same family) — 145 km/h (90 mph); 800 × 1000 mm; 200–500 mm; 160,000 m³/h; -40 to +50 °C; CFR
• VRSF 1120 E4030 (attachment nozzle / WLTP) — 135 km/h; 600 × 1000 mm; 200–500 mm; 81,000 m³/h; -40 to +50 °C; WLTP
• VRSF 1120 E3961 — 160 km/h; 1000 × 800 mm; 50 mm; 128,000 m³/h; -10 to +45 °C; RDE, WLTP
• VAF 2x1120 E4004 — 96 km/h (60 mph); 1000 × 1700 mm; 150 mm; 163,200 m³/h; +10 to +40 °C; SC03, CFR
• VAF 2500 E3934 — 180 km/h; 1100 × 2000 mm; 200–500 mm; 400,000 m³/h; 0 to +40 °C; application specific
• VAF 2240 E3949/E3904 — 160 km/h; 1000 × 2000 mm; 200–500 mm; 320,000 m³/h; 0 to +40 °C; application specific
• VAF 2240 E3794 — 145 km/h; 1800 × 1050 mm; 100 mm; 270,000 m³/h; -10 to +40 °C; application specific
• VAF 2240 E3847 — 145 km/h; 1000 × 2000 mm (360° rotatable); —; 290,000 m³/h; -10 to +40 °C; application specific
• VAF 1400 — 100 km/h; 715 × 1400 mm; 125 mm; 100,000 m³/h; +10 to +40 °C; application specific

Technical specifications

• Discharge area for homogeneous distribution: 1.7 m² (reference for SC03 tests)
• Standards and applicability: SC03 (CFR § 1066); selected versions also support WLTP and RDE
• Optional attachment nozzle available to increase discharge velocity for WLTP applications (up to ~135 km/h)
• Nominal conveyed volume flows range approximately from 81,000 m³/h to 400,000 m³/h depending on model
• Blow-out cross sections and heights vary by type; consult technical data for model-specific dimensions
• Ambient temperature operating ranges vary by model: from -40 °C up to +50 °C for certain versions
