Humidifier HPH
Add to favorites
Compare this product
Description
Product overview

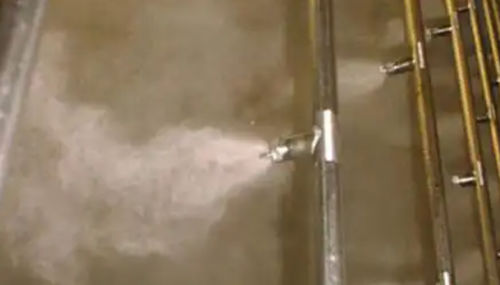

Our LTG HPH high-pressure humidifier atomizes fresh water at high pressure to generate a fine mist. The fine droplets evaporate rapidly, producing an adiabatic cooling effect. Excess droplets (approximately 25% of the atomized volume) are separated by a dedicated droplet separator.
Operation and control
The volume of water to be atomized is determined by the required humidity. Water volume is proportional to the speed of the high-pressure plunger pump and is adjusted via a frequency converter. Depending on water volume, the LTG high-pressure impact nozzles build up a counter-pressure that enables efficient atomisation. The impact nozzles operate in the range of 10–120 bar.
Water quality and hygiene
Adequate water quality is essential to prevent contamination of the humidifier and air ducts, clogging of high-pressure impact nozzles and salt carry-over into the room. Water quality affects system contamination, hygiene, air purity, humidification efficiency and water consumption. LTG cooperates with water treatment specialists to recommend suitable water treatment solutions.
Technical data (table)
Type | Air volume [m³/h] | Velocity Through Media [m/s] | Width [mm] | Height [mm] | Length [mm]
HPH | 200 000-500 000 | 3-6 | 1 000-5 000 | 1 000-5 000 | 1 750-3 000
Application solutions
Technical specifications
Our LTG HPH high-pressure humidifier atomizes fresh water at high pressure to generate a fine mist. The fine droplets evaporate rapidly, producing an adiabatic cooling effect. Excess droplets (approximately 25% of the atomized volume) are separated by a dedicated droplet separator.
Operation and control
The volume of water to be atomized is determined by the required humidity. Water volume is proportional to the speed of the high-pressure plunger pump and is adjusted via a frequency converter. Depending on water volume, the LTG high-pressure impact nozzles build up a counter-pressure that enables efficient atomisation. The impact nozzles operate in the range of 10–120 bar.
Water quality and hygiene
Adequate water quality is essential to prevent contamination of the humidifier and air ducts, clogging of high-pressure impact nozzles and salt carry-over into the room. Water quality affects system contamination, hygiene, air purity, humidification efficiency and water consumption. LTG cooperates with water treatment specialists to recommend suitable water treatment solutions.
Technical data (table)
Type | Air volume [m³/h] | Velocity Through Media [m/s] | Width [mm] | Height [mm] | Length [mm]
HPH | 200 000-500 000 | 3-6 | 1 000-5 000 | 1 000-5 000 | 1 750-3 000
Application solutions
- Printing and paper technology
- Automotive / wind simulation
- Textile technology / Nonwoven
Technical specifications
- Model / Type: HPH
- Humidification principle: High-pressure atomisation using impact nozzles
- Operating nozzle pressure range: 10 - 120 bar
- Atomization: Produces fine mist; average ~25% excess droplets separated by droplet separator
- Pump: High-pressure plunger pump with speed control via frequency converter (water volume proportional to pump speed)
- Air volume capacity: 200,000 - 500,000 m³/h
- Velocity through media: 3 - 6 m/s
- Dimensions (typical ranges): Width 1,000 - 5,000 mm; Height 1,000 - 5,000 mm; Length 1,750 - 3,000 mm
- Water quality: Recommended water treatment required to avoid nozzle clogging and system contamination; affects hygiene, air purity and water consumption
- Typical deliverable items: High-pressure impact nozzles, droplet separator, plunger pump, frequency converter control
