Humidifier DK

Product details
Our LTG air washers type DK are designed for the humidification and adiabatic cooling of air using water. The high water flow also provides an air-washing effect.
The units are intended for integration in air handling systems and consist of nozzle chambers in a shell design. The tank and the nozzle chamber housings are made of GRP (glass fiber reinforced plastic) or stainless steel. A filter box, mounted either outside or inside the housing depending on available space, cleans the circulating water. Flow rectifiers on the air inlet ensure even airflow through the nozzle chamber. At the air outlet, separators remove excess free water from the airstream; fine mist may evaporate. Rectifier blades prevent splash water at the inlet. Water is finely distributed by spray nozzles mounted on nozzle holders to form a mist. The circulation pump (located outside the nozzle chamber) draws water after the filter. A built-in float valve maintains a constant water level during operation and standstill. Different nozzle types allow adjustment of humidification conditions and water volumes.

Advantages

• Humidifying, adiabatic cooling and washing of air in a single unit
• Corrosion-resistant housings in GRP or stainless steel
• Integrated filter box for cleaning recirculated water
• Multiple available sizes to match required air volume

Technical data (table)
Type | Width [mm] | Height [mm] | Air flow (standard) [m³/h]
DK | 1 250 | 1 000 | 160 000
| 1 500 | 1 000 | 19 000
| 1 500 | 1 500 | 28 000
| 2 000 | 1 750 | 44 000
| 2 000 | 2 250 | 57 000
| 2 000 | 2 750 | 69 000
| 2 250 | 2 750 | 78 000
| 2 500 | 2 750 | 87 000
| 2 500 | 3 250 | 102 000
| 2 750 | 3 250 | 113 000
| 3 000 | 3 250 | 123 000
| 3 250 | 3 500 | 143 000
| 3 500 | 3 500 | 154 000
| 6 000 | 6 000 | 453 000

Characteristics / technical specifications

• Function: humidifying, adiabatic cooling and washing of air (combined function)
• Construction: nozzle chambers in shell design
• Materials (housing & tank): GRP (glass fiber reinforced plastic) or stainless steel

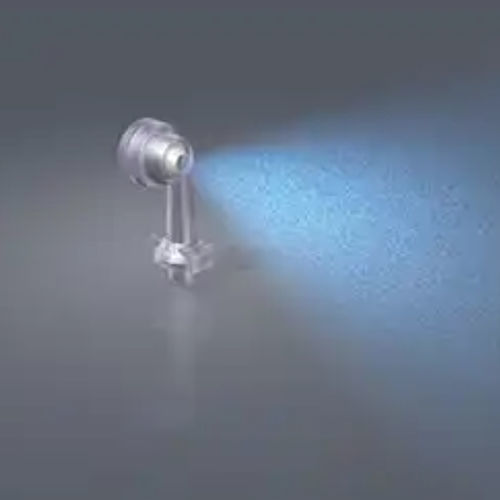

• Water distribution: fine atomisation via spray nozzles mounted on nozzle holders
• Water treatment: integrated filter box for cleaning recirculated water (mountable inside or outside housing)
• Airflow management: rectifiers on air inlet for uniform flow; separators on air outlet to remove free water (fine mist may evaporate)
• Level control: built-in float valve maintains constant water level during operation and standstill
• Pumping: circulation pump mounted outside nozzle chamber, draws water after filter
• Adaptability: different nozzle types to achieve varying humidification conditions and water volumes
• Available sizes: multiple width/height combinations with standard air flows from approx. 19 000 m³/h up to 453 000 m³/h
