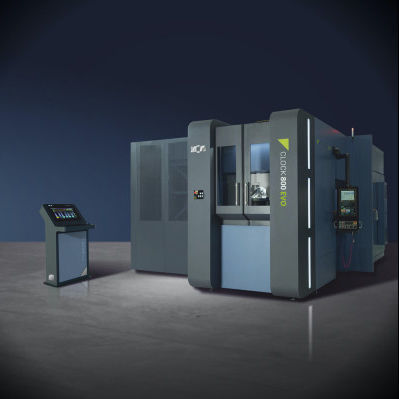

5-axis machining center CLOCK 800 EVO4-axishorizontalfor aeronautics
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of axes
- 5-axis, 4-axis
- Spindle orientation
- horizontal
- Applications
- for aeronautics
- Rotational speed
Max.: 30,000 rpm
(188,496 rad.min-1)Min.: 10,000 rpm
(62,832 rad.min-1)- X travel
800 mm
(31.5 in)- Y travel
800 mm
(31.5 in)- Z travel
800 mm
(31.5 in)
Description
Pallet - Option 1 -
mm
500 x 500
500 x 500
Ø 630
Option 2 2 -
mm
500 x 630
500 x 630
-
Rotary Table (B-Axis) - Max. Rotation Speed - min-1 - 100 - 100 - 100 / 1.200
5th Axis (A-Axis) - Type - - - - Tilting Table - Tilting Table
Tilting Angle - Degrees - - - 140 (+35/-105) - 140 (+35/-105)
Spindle Unit - Tool-Taper - - HSK / ISO / CAPTO
Tool-Magazine - Capacity (up to)1 - No. - 80 (500+) - 80 (500+) - 80 (500+)
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
