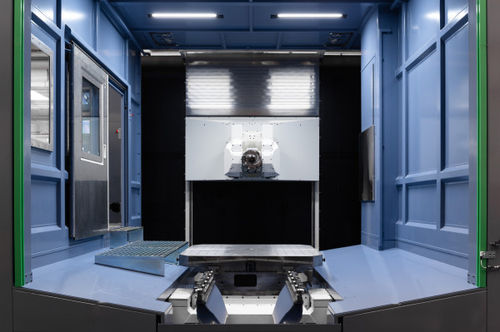

5-axis machining center TANK.G 30004-axishorizontalfor aeronautics
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Number of axes
- 5-axis, 4-axis
- Spindle orientation
- horizontal
- Applications
- for aeronautics
- Other characteristics
- CNC
- Rotational speed
Max.: 30,000 rpm
(188,496 rad.min-1)Min.: 6,000 rpm
(37,699 rad.min-1)- X travel
3,000 mm
(118.11 in)- Y travel
2,500 mm
(98.43 in)- Z travel
2,500 mm
(98.43 in)
Description
Pallet - Option 1 -
mm
1.250 x 1.250
1.250 x 1.250
-
Option 2 2 -
mm
1.250 x 1.600
1.250 x 1.600
-
Rotary Table (B-Axis) - Max. Rotation Speed - min-1 - 8 / 15 - 8 / 15 - -
5th Axis (A-Axis) - Type - - - - Tilting Head - -
Tilting Angle - Degrees - - - 175 (+80/-95) - -
Spindle Unit - Tool-Taper - - HSK / ISO - -
Tool-Magazine - Capacity (up to)1 - No. - 80 (999) - 80 (999) - -
Available Configurations - Single-Pallet / Twin-Pallet / Multi-Pallet / FMS
