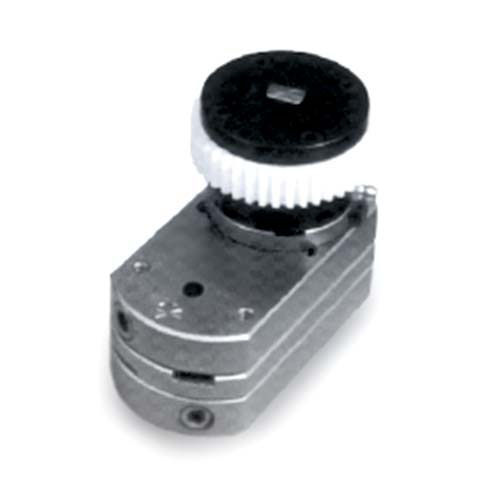

50 - 100 bar pump MarChem™

for aircraft

Economical pump for low viscosity. Multi-pump single drive option for quick change ability. FEATURED SPECIAL: The High Quality MarChem RV Pumps are currently in stock at UNBELIEVABLE prices and available for Next Day Delivery. Special order the RV Pumps with a Motor Assembly and get them in 2 Weeks. Pump Specs APPLICATION: - Pumping and metering of various liquids PORTS – Inlet: - 9.7 mm (0.382”) diameter PORTS – Outlet: - 5.5 mm (0.216”) diameter OUTLET PRESSURE: - Up to 70 bar (1000 psig) DIFFERENTIAL PRESSURE: - Up to 60 bar (870 psig) RECOMMENDED SPEED: - 10-60 rpm (for 10-100 poise viscosity liquid) ROTATION DIRECTION: - Counterclockwise (viewed at drive side) OPERATING TEMP: - Up to 120C (250F) TORQUE FOR BOLTS: - Seal screws (M5x0.8): 8 Nm Binder screws (M6x1): 12-13 Nm
