Milling chuck MTC series
for aeronautics

milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
milling chuck
Add to favorites
Compare this product


Characteristics

Applications
milling
Other characteristics
for aeronautics
Clamping range

Min.: 3 mm (0.12 in)

Max.: 20 mm (0.79 in)

Length

Min.: 80 mm (3.15 in)

Max.: 200 mm (7.87 in)

Diameter

Min.: 15 mm (0.59 in)

Max.: 53 mm (2.09 in)

Description

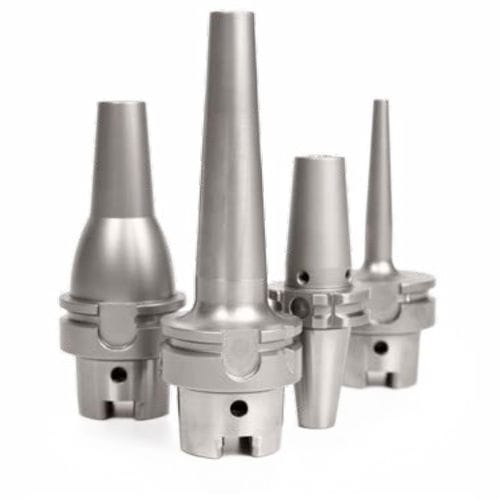

Using the shrink chucks ThermoChuck the tools can be accurately clamped for almost all milling operations. High torque transmission and radial rigidity characterise this chuck. Long-term radial run-out accuracy and repetition accuracy of < 3 µm in the location bore guarantee high dimensional accuracy at the workpiece. The shrink chucks from MAPAL are finely balanced as standard so that high surface finishes and long tool lives are ensured. The standard programme of shrink chucks ThermoChuck MTC includes designs with narrow external contour, heavy-duty designs as well as a broad MQL program. In addition, long designs up to 300 mm with HSK-A shank are available from stock. - High torque transmission and radial rigidity - Long service life due to usage of heat-resistant tool steel - Numerous possible combinations of shrink chucks and extensions - Suitable for MQL
