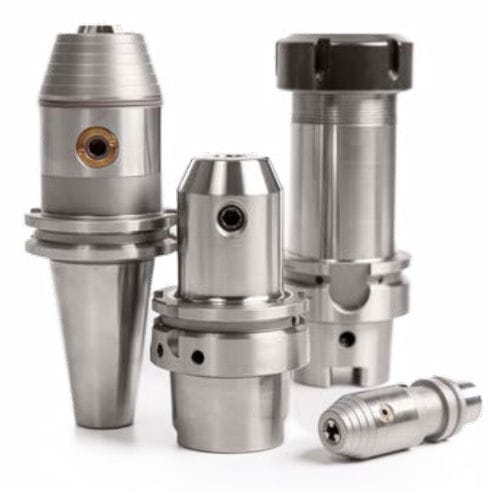

Drilling chuck MPC, MCC, MNC series
millingfor aeronautics

drilling chuck
drilling chuck
Add to favorites
Compare this product


Characteristics

Applications
drilling, milling
Other characteristics
for aeronautics
Clamping range

Min.: 0.2 mm (0.01 in)

Max.: 16 mm (0.63 in)

Length

Min.: 49 mm (1.93 in)

Max.: 122 mm (4.8 in)

Diameter

Min.: 19 mm (0.75 in)

Max.: 57 mm (2.24 in)

Description

Precision drill chucks MPC Collet chucks MCC Weldon and Whistle Notch MNC chucks Mechanical chucks impress due to their simple construction and the uncomplicated handling. The clamping is safeguarded regardless of the direction of rotation even at high spindle speeds. The standard programme for mechanical tool clamping covers precision drill chucks that are also available in a micro design with direct clamping from 0.2 mm. Due to the modular design, the drill chucks are available with all forms of machine-side tool bodies. Collet chucks, Weldon and Whistle Notch chucks round off the programme of mechanical chucks. - Simple construction and uncomplicated handling - Safe clamping regardless of direction of rotation - High spindle speed strength - Modular design makes it possible to use drill chuck heads on all tool connections
