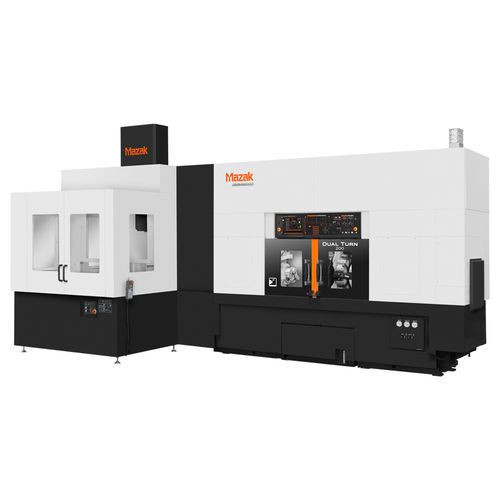

Vertical turning center DUAL TURN 200

CNC2-axisfor the aerospace industry

Integration of two 2-axis CNC Turning Centres into a single machine tool Symmetrical 2-spindle / 2-turret structure Simultaneous machining on both spindles and automatic transfer from first to second spindle enables continuous machining 30% reduction in floor space compared to two 2-axis CNC turning centres of the same class Considering dead space between machines, work-in-process storage, maintenance areas, and chip conveyors difference in space becomes even larger. Symmetrical structure for productivity Symmetrical spindle and turret Two spindles / turrets with the same machining capacity are equipped on both sides of the structure. The built-in motor spindle ensures high-accuracy machining at all revolution ranges, from low speed to high-speed. With the non-lift rotary indexing, high-speed turret clamping / unclamping can be performed with minimum interference. Continuous machining with automatic workpiece transfer High-speed, high-accuracy automatic transfer function can make highly efficient OP10 and OP20 continuous machining with a single chucking operation possible. Automatic partition for independent machining in both areas Complete separation of the machining area prevents chips and coolant from scattering to the other side. It is possible to machine the left and right side separately, or to replace one workpiece while the other is being machined. High productivity and space-saving No in-process inventory due to process integration Automatic transfer integrates the machining of OP10 and OP20 of the turning process. This will eliminate in-process inventory for machining workpieces.
