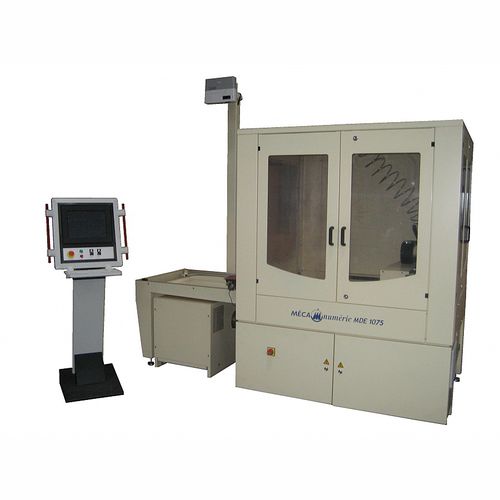

Composite cutting machine MDE
metalfor plasticsfor glass

composite cutting machine
composite cutting machine
composite cutting machine
Add to favorites
Compare this product


Characteristics

Dispensed product
metal, for composites, for plastics, for glass
Type
water jet
Product handled
honeycomb
Other characteristics
for aeronautics
X travel

1,005 mm, 1,050 mm
(40 in, 41 in)

Y travel

750 mm, 755 mm
(30 in, 30 in)

Description

Pure water jet cutting machine The MDE range allows cutting with very high pressure pure water. Available with different pumps and options, it is particularly used by industrial players in the textile and leather goods industries. SOME OF THE POSSIBLE OPTIONS Suction of cutting mists (cutting with pure water) Closed circuit water cooling system for HP pump Booster pump (booster pump for water supply to the THP pump Water softener Structure - frame single block in welded steel - mobile gantry in welded steel - stainless steel tank - plastic or aluminum honeycomb coating - 3-turn rotary table for cutting / loading and simultaneous nesting / unloading (MDE-R only) Kinematics : - guidance by stainless steel precision linear rails with preloaded ball slides - XYZ transmission by pre-loaded ball screws (double X-axis motorization) - motorization by AC brushless motors - rotative table with cross-roller crown (MDE-R only) Numerical control : - Numerical control MECANUMERIC CN7000 ISO with 40 Gb hard disk - MHI on control desk with a 15-inch touch screen - Data input by Ethernet link, USB port
