Airliner starter 170

airliner starter
airliner starter
airliner starter
airliner starter
airliner starter
airliner starter
airliner starter
Add to favorites
Compare this product


for airliners

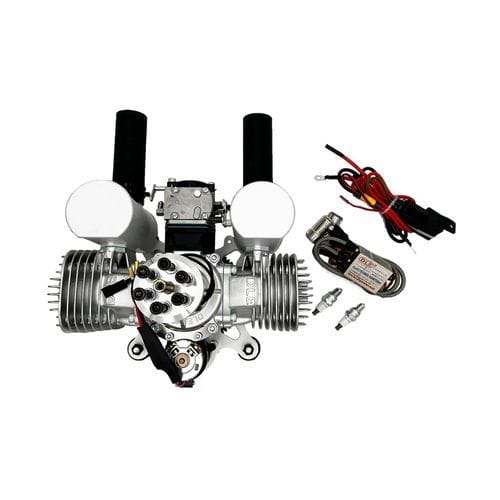

DLE170 is an upgraded product of the previous RC Model engine DLE170 version. We have redesigned the entire structure of the enginein order to providea better power. The new planetary gear starting mechanism has replaced the complex starting system in earlier versions. It's not only simplifies the number of parts be used, also reduces the weight of the engine and the failure rate. The new version of engine now is capable for multi-task purposes. We can now provide different rotation (counter-clockwise , clockwise) and in-build generator kit.。 Planetary gear starter assembly It has small size with high torque, high durability, more reliable choice for paramotor, UAV and other projects. The output gear will only extend and drive the engine while starting the engine. After the engine is started and the starter stopped, the output gear will disengage and retract to back. weight Engine+Muffler 5900g Lgniter+Spark plug 265g Relay 160g Rectifier 415g Engine+Muffler 5900g Lgniter+Spark plug 265g Relay 160g Parameter performance 17.5HP/7500rpm Diameter × Stroke 52mm × 40mm Recommended Propeller 32x10 32x12 Compression Ratio 9.5 :1 Lubrication Ratio 30 :1 Displacement 170cm³ Spark Plug Type NGK CMR7H Starting motor power 12V 400W Generator voltage 14.5V Generator power 350W/6000rpm
