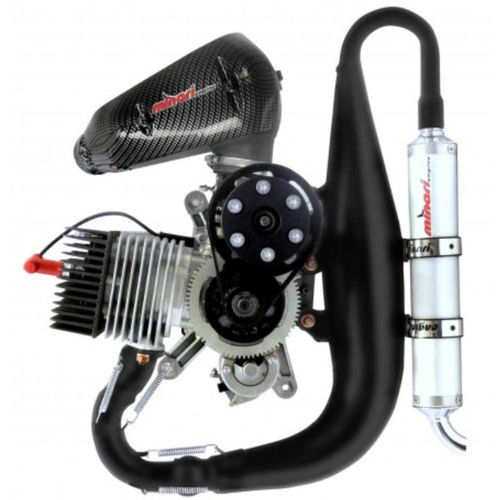

10 - 50hp piston engine F1-E9-F
50 - 100kgfor light aircraft2-stroke

10 - 50hp piston engine
10 - 50hp piston engine
Add to favorites
Compare this product


Characteristics

Engine power
10 - 50hp
Dry weight
50 - 100kg
Applications
for light aircraft
Cycle
2-stroke
Number of cylinders
single-cylinder

Description

- CRANKCASE Magnesium - CYLINDER Aluminium, 6 ports with nickel-silicon plating - PISTON 2 rings, thickness 1.2mm chromed steel - COOLING: Natural air - DIAMETER & STROKE 66x52.8 - COMPRESSION RATIO 11:1 - INLET Crankcase reed valve with 4 petals - CARBURETOR Walbro WB37C - IGNITION Electronic with variable advance - STARTING OPTIONS Electric + battery charger or Dual start (Easy starter + electric/starter) - CLUTCH Centrifugal Clutch - TRANSMISSION POLY-V Belt - REDUCTION Pulley ratio 1/2.88 - ENGINE SUPPORTS 4 silent-block - FUEL Unleaded gasoline + 2.5% of synthetic oil - ROTATION SENSE Frontal anti-clockwise - AIR FILTER Airbox - BATTERY CHARGE Output power 80W at 5.000 Rpm - SPARK PLUG CAP Antijamming - EXHAUST With aluminium silencer
