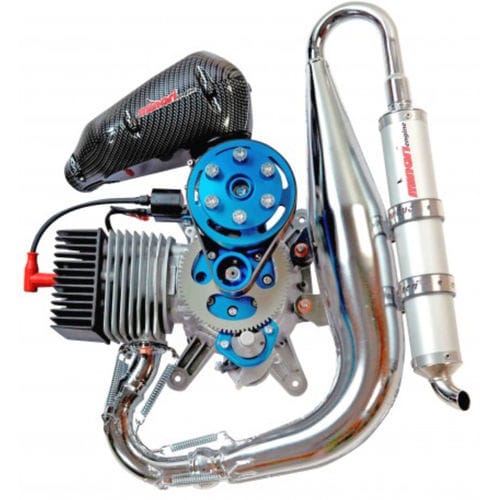

10 - 50hp piston engine F1-ME9C-CL50 - 100kgfor light aircraft2-stroke
Add to favorites
Compare this product
Characteristics
- Engine power
- 10 - 50hp
- Dry weight
- 50 - 100kg
- Applications
- for light aircraft
- Cycle
- 2-stroke
- Number of cylinders
- single-cylinder
Description
- CRANKCASE Magnesium
- CYLINDER Aluminium, 6 ports with nickel-silicon plating
- PISTON 2 rings, thickness 1.2mm chromed steel
- COOLING: Natural air
- DIAMETER & STROKE 66x56.8
- DISPLACEMENT 194.22cc
- COMPRESSION RATIO 11:1
- INLET Crankcase reed valve with 4 petals
- CARBURETOR Walbro WB37C
- IGNITION Electronic with variable advance
- STARTING OPTIONS Electric+battery charger / Dual start (Pull starter +electric/starter with or without battery charger option)
- TRANSMISSION POLY-V Belt
- REDUCTION Pulley ratio 1/2.76
- ENGINE SUPPORTS 4 silent-block
- FUEL Unleaded gasoline + 2.5% of synthetic oil
- ROTATION SENSE Frontal anti-clockwise
- AIR FILTER Airbox
- BATTERY CHARGE Output power 80W at 5.000 Rpm
- SPARK PLUG CAP Antijamming
- EXHAUST With aluminium silencer
