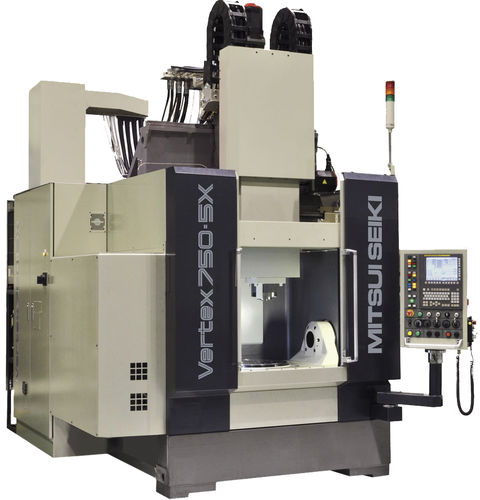

5-axis machining center Vertex750-5X
verticalfor the aerospace industry

5-axis machining center
5-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Other characteristics
for the aerospace industry
Rotational speed

Min.: 250 rpm
(1,571 rad.min-1)

Max.: 25,000 rpm
(157,080 rad.min-1)

X travel

750 mm
(30 in)

Y travel

800 mm
(31 in)

Z travel

700 mm
(28 in)

Description

●This machine has Outstanding space efficiency (55X Ⅱ: 2mX3m 75X Ⅱ: 3.4MX2.2M), and is available for loading big work (55X Ⅱ:φ750mm×height 525mm 75X Ⅱ:φ950mm×height 650mm              ●The tilting table and rotary table are assembled in-house and also have realized high accuracy and high speed indexing positioning       ●It is easy to access to tools and works.                    ●Great cutting chips handling are realized with center through type.   ●Spindle thermal displacement equip as standard amd improve accuracy in dynamic status
