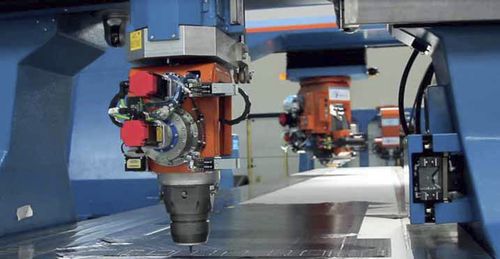

Ultrasonic Composite Cutting Machine
The lightweight, sturdy torsion free gantry concept enables the machine to provide maximum acceleration-deceleration at the highest feed rates.
An ultrasonic cutting system provides the appropriate high frequency vibration capabilities for optimal cutting conditions and maximum feed rates.
The well proven modular machine system is the basis for each individual application.
TORRESPANEX Gantry cutting machines are built in various sizes to meet customer requirements and specifications.
Optionally an Automatic Tool Changer for different SONOTRODES utilization, as well as Part Labelling capabilities are available.
The machine may also include a vacuum table to support the component to be cut or a conveyor for easy part loading/unloading can be provided.
Applications may include net cutting of compound contoured fuselage panels, wing skins, composite structures, frames, stringers, etc.
A nesting software is optionally available to optimize the material usage.
Also a user friendly HMI is provided to facilitate machine operation.
A postprocessor can optionally be provided.
