5-axis machining center T
with swiveling spindlefor the aerospace industryCNC

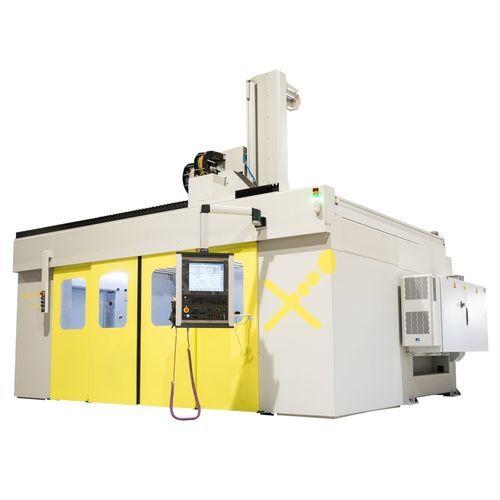

5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC - image - 2
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC - image - 3
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC - image - 4
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC - image - 5
5-axis machining center - T  - MULTIAX INTERNATIONAL CNC SRL - with swiveling spindle / for the aerospace industry / CNC - image - 6
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
with swiveling spindle
Applications
for the aerospace industry
Other characteristics
CNC, gantry, with moving table, with fixed table
Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 18,000 rpm
(113,097 rad.min-1)

X travel

3,600 mm, 4,800 mm, 6,000 mm
(141.73 in, 188.98 in, 236.22 in)

Y travel

1,800 mm, 2,600 mm
(70.87 in, 102.36 in)

Z travel

1,200 mm, 1,400 mm
(47.24 in, 55.12 in)

Description

The perfect closed cell CNC 5-axis machining center. Multiax has developed a 5-axis machining center for fast and accurate machining of complex 3D surfaces which are generally used in the plastic and composites industry. The T SERIES is productive, reliable, and easy to use. It is built to exceed the customer's expectations. This is possible thanks to the rigid construction frame and the mechanical components which lead to greater axis squareness, speed and positioning accuracies. The mechanical structure has been tested with Finite Element Analysis software to simulate extreme stress and heavy usage, and also to check the base sturdiness.

Catalogs

T Series
T Series
2 Pages
