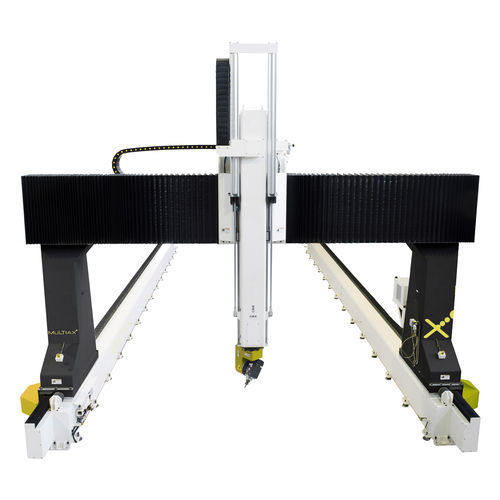

6-axis machining center L
5-axiswith swiveling spindleCNC

6-axis machining center
6-axis machining center
6-axis machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis, 6-axis
Spindle orientation
with swiveling spindle
Other characteristics
CNC, for the aerospace industry, gantry, with moving table, with fixed table, traveling-column
Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 18,000 rpm
(113,097 rad.min-1)

X travel

2,400 mm, 9,500 mm
(94 in, 374 in)

Y travel

2,500 mm, 42,000 mm
(98 in, 1,654 in)

Z travel

1,200 mm, 4,000 mm
(47 in, 157 in)

Description

Heavy duty low rail gantries, ideal for hybrid configurations. One of the most important aspects of an open structure/low rail structure is that it enables maximum accessibility (loading/unloading) either from the front or from the sides. The travelling column design provides an easily accessible ground-level room for crane or forklift truck loading and unloading. Beyond this, the workpiece can be visualized from different perspectives (this is not possible with suspended gantry structures), for being eventually machined again, without being taken out from the machine. This is very useful to prototype departments or any application where the design of the part must be validated before downloading the mould from the CNC machine.

Catalogs

L Series
L Series
2 Pages
