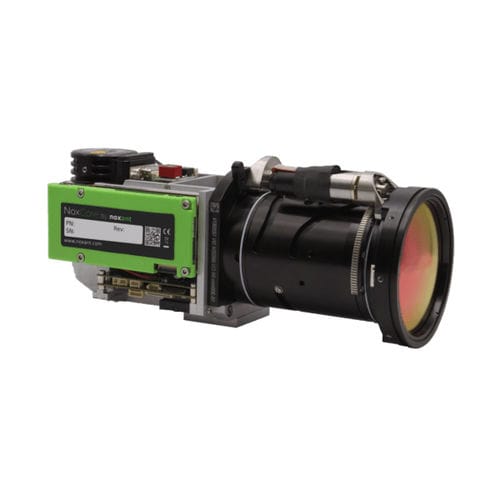

NOXCORE F4
COMPACT HIGH PERFORMANCE INFRARED CAMERA CORES
COMPACT
CRYSTAL CLEAR IMAGE WITH ADVANCED VIDEO PROCESSING
STANDARD INTERFACES FOR SEAMLESS INTEGRATION
MADE IN FRANCE
Nox Core F4 is the latest addition to the surveillance and security product portfolio. Based on latest generation of NoxEngine Technology, NoxCore F4 provides unmatched performance together with seamless integration effort.
NoxCore F4 is dedicated to applications where cutting edge technologies are required.
Equipped with the latest generation of thermal detector, cooled by stirling engine, NoxCore F4 cores offer extreme performance in a reduced footprint and energy consumption.
The Noxant team is dedicated to provide you with in-depth assistance for the optimal integration of NoxCore Vision in your system, and trains your team to get the maximum out of the NoxEngine technology.
SPECIFICATIONS
VIDEO AND CONTROL INTERFACES
Video Output Format :
Color HDMI 720p with color overlay
Optional SDI or Analog
Video Streaming :
h.264 : RTSP or UDP
RAW : GigEVision
Control :
RS232 or Ethernet IP
DETECTOR
Cooled MCT, snapshot FPA
Spectral Range : Band 2 - 3.7μm to 4.8μm
Matrix size : 640x512 pixels
Pitch 15μm
Optical aperture f/4
Cooling by Rotary Stirling
Cooldown Time @20°C <6min
PHYSICAL AND ENVIRONMENT SPECIFICATIONS
<20W in steady operation @24VDC
Power Supply : 24VDC
Operating Temperature Range :
-30°C to +65°C
Storage Temperature Range :
-40°C to +70°C
Vibration :
Operational 2g, IEC 68-2-29
Shock :
Operational 25g, IEC 68-2-26
