video surveillance camera / thermal / for airports / compact
NOXCORE HD

Add to MyAeroExpo favorites
Compare this product Don’t compare this product
video surveillance camera / thermal / for airports / compact video surveillance camera / thermal / for airports / compact - NOXCORE HD
{{requestButtons}}

Characteristics

  • Type:

    video surveillance, thermal

  • Applications:

    for airports

  • Other characteristics:

    compact

Description

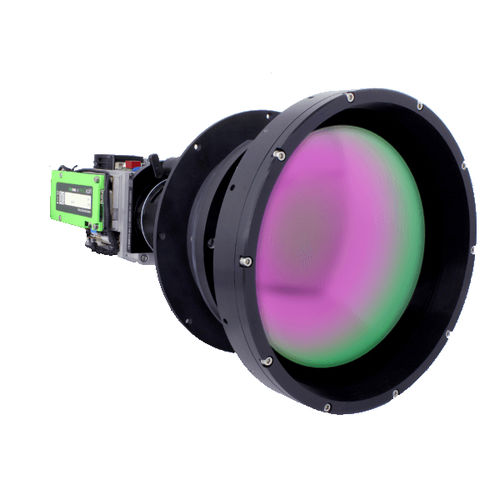

NOXCORE HD

COMPACT HIGH DEFINITION INFRARED CAMERA CORES

IMPROVED SITUATION AWARNESS
CRYSTAL CLEAR IMAGE WITH ADVANCED VIDEO PROCESSING
STANDARD INTERFACES FOR SEAMLESS INTEGRATION
MADE IN FRANCE

Nox Core HD is the latest addition to the surveillance and security product portfolio. Based on latest generation of NoxEngine Technology, NoxCore HD provides unmatched performance together with seamless integration effort.

NoxCore HD is dedicated to applications where cutting edge technologies are required. It provides increased situation awarness thanks to its larger field of view, compared to SD variants.

Equipped with the latest generation of thermal detector, cooled by stirling engine, NoxCore HD cores offer extreme performance in a reduced footprint and energy consumption.

The Noxant team is dedicated to provide you with in-depth assistance for the optimal integration of NoxCore Vision in your system, and trains your team to get the maximum out of the NoxEngine technology.

SPECIFICATIONS
VIDEO AND CONTROL INTERFACES
Video Output Format :
Color HDMI 720p with color overlay

Optional SDI or Analog

Video Streaming :
h.264 : RTSP or UDP

RAW : GigEVision

Control :
RS232 or Ethernet IP

DETECTOR

Cooled MCT, snapshot FPA
Spectral Range : Band 2 - 3.7μm to 4.8μm
Matrix size : 1280 x 720 pixels

Pitch 10μm

Optical aperture f/4
Cooling by Rotary Stirling
Cooldown Time @20°C <6min
PHYSICAL AND ENVIRONMENT SPECIFICATIONS
<20W in steady operation @24VDC
Power Supply : 24VDC
Operating Temperature Range :
-30°C to +65°C

Storage Temperature Range :
-40°C to +70°C

Vibration :
Operational 2g, IEC 68-2-29

Shock :
Operational 25g, IEC 68-2-26
