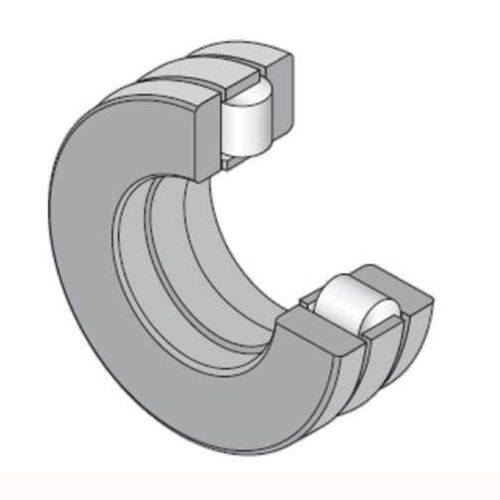

Cylindrical roller thrust bearing 81104T2
needle rollercage assemblyfor airliners

cylindrical roller thrust bearing
cylindrical roller thrust bearing
cylindrical roller thrust bearing
Add to favorites
Compare this product


Characteristics

Rolling element
cylindrical roller, needle roller
Other characteristics
cage assembly
Applications
for airliners

Description

Brand - NTN d - Bore diameter of support washer IR - WS - 20 mm D - Outside diameter of support washer OR - GS - 35 mm d1 - External diameter of support washer IR - WS - 35 mm D1 - Bore diameter bearing washer OR - GS - 21 mm T - Thrust bearing height - 10 mm Dw - Rolling element diameter - 4,5 mm Dc1 - Roller cage bore diameter - 20 mm Dc - Roller cage outer diameter - 35 mm rs - Min fillet radius - 0,3 mm Cage assembly reference - K81104T2 Bearing ring (inner ring) WS - WS81104 Bearing ring (outer ring) GS - GS81104 Ea - Rollers reference outer diameter - 32,3 mm Eb - Rollers reference inner diameter - 22,4 mm Mass - 0,04 kg Cage assembly mass - 0,012 kg Bearing ring (inner ring) WS mass - 0,014 kg Bearing ring (outer ring) GS mass - 0,014 kg
