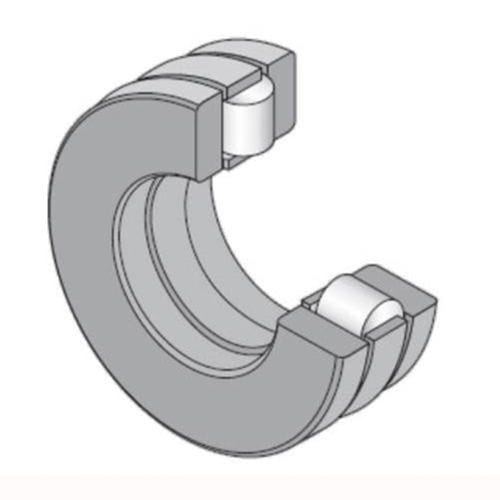

Cylindrical roller thrust bearing 81113T2
needle rolleraxialcage assembly

cylindrical roller thrust bearing
cylindrical roller thrust bearing
cylindrical roller thrust bearing
cylindrical roller thrust bearing
Add to favorites
Compare this product


Characteristics

Rolling element
cylindrical roller, needle roller
Configuration
axial
Other characteristics
cage assembly
Applications
for airliners

Description

Brand - NTN d - Bore diameter of support washer IR - WS - 65 mm D - Outside diameter of support washer OR - GS - 90 mm d1 - External diameter of support washer IR - WS - 90 mm D1 - Bore diameter bearing washer OR - GS - 67 mm T - Thrust bearing height - 18 mm Dw - Rolling element diameter - 7,5 mm Dc1 - Roller cage bore diameter - 65 mm Dc - Roller cage outer diameter - 90 mm rs - Min fillet radius - 1 mm Cage assembly reference - K81113T2 Bearing ring (inner ring) WS - WS81113 Bearing ring (outer ring) GS - GS81113 Ea - Rollers reference outer diameter - 85,2 mm Eb - Rollers reference inner diameter - 68,8 mm Mass - 0,34 kg Cage assembly mass - 0,09 kg Bearing ring (inner ring) WS mass - 0,125 kg Bearing ring (outer ring) GS mass - 0,125 kg PRODUCT PERFORMANCE Ca - Dynamic axial load rating - 73 kN C0a - Static axial load rating - 236 kN Cua - Limit axial load rating - 28,8 kN Nlim - Grease lubrication limit speed - 780 tr/min Nlim - Oil lubrication limit speed - 3100 tr/min Tmin - Min operating temperature - -20 °C Tmax - Max operating temperature - 120 °C
