Obstruction light OFC-RI-048-R
IRmedium-intensityflashing

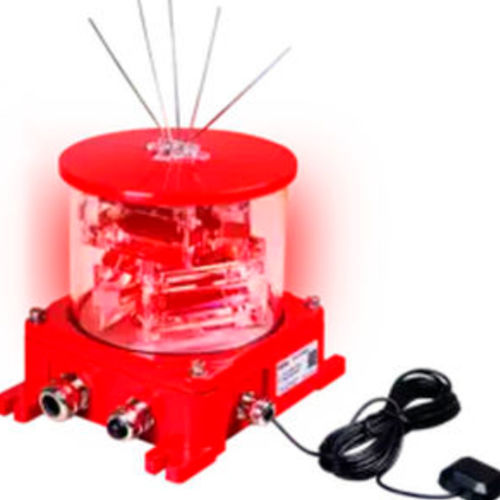

Obstruction light - OFC-RI-048-R - OBSTA - IR / medium-intensity / flashing
Obstruction light - OFC-RI-048-R - OBSTA - IR / medium-intensity / flashing
Add to favorites
Compare this product

Characteristics

Type
obstruction
Technology
IR
Other characteristics
red, flashing, medium-intensity
Power

10 W

Voltage

48 V

Description

Description
  • Integrated flash-head with built-in power supply for simplified installation
  • 6 Obsta optics with toughened glass cover and aluminium base
  • Front-opening flash-head with no loose parts during maintenance
  • NVG compatible when configured with IR
  • Alarm compliant with FAA Engineering Brief 98
  • Surge protection with visible failure indicator
  • Membrane vent for pressure equalization
  • Top sync for optional side lights (L-810 variants)
  • GPS antenna included; internal photocell option '-R'
  • Selectable configurations via internal dip-switches: ICAO medium intensity type B (20/30/40/50/60 fpm), ICAO type C or FAA L-864 (specify on order). FAA L-864 and L-885 configurations ordered with suffix L864 / L865


Standards & Certifications
  • Standards: ICAO Annex 14 Chapter 6, FAA AC 150/5345-43J, UK MOD, Transport Canada
  • Certifications: FAA (AC 150/5345-43J), ETL certified, DGAC (France)


Electrical Properties
  • Main voltage: 48VDC (-10%; +15%)
  • Average power: 10W (ICAO/FAA configuration @ 30 fpm)


Mechanical Properties
  • Ingress protection: IP66
  • Wiring: cable entry by nickel-plated brass glands; terminal connections
  • Operating temperature: -40 to +55 °C
  • Weight: 5 kg
  • Dimensions: 220 x 190 x 190 mm
  • Cable entry diameter: 7–13 mm
  • Wire cross-section: up to 6 mm² (power), up to 1.5 mm² (signal)
  • Mounting: 4 holes Ø9 mm, pattern 200 x 140 mm


Photometric
  • IR intensity & wavelength: 600 mW/sr @ 800–900 nm
  • Effective night output at 0°: 2000 cd (red) with IR
  • Nominal color (night): Red
  • Vertical beam spread: 3°
  • Horizontal coverage: 360°
  • Default flash rate: 30 flashes per minute (selectable)


Additional information
  • Model: OFC-RI-048-R
  • Part Number: 113790RI-048-R
  • Reference on page: OFC-RI-048-R
  • Includes GPS antenna; internal photocell option '-R'
  • Alarm and surge-protection indicator included


Technical specifications
  • Model: OFC-RI-048-R
  • Part Number: 113790RI-048-R
  • Description: Red medium-intensity obstruction light, FAA L-864, ETL certified
  • Main voltage: 48VDC (-10%; +15%)
  • Average power: 10W (ICAO/FAA @ 30 fpm)
  • IR intensity & wavelength: 600 mW/sr @ 800–900 nm
  • Effective night output (0°): 2000 cd (red) with IR
  • Vertical beam spread: 3°; Horizontal: 360°
  • Flash rates: ICAO medium intensity B selectable 20/30/40/50/60 fpm; default 30 fpm
  • NVG compatible (with IR)
  • Alarm compliant with FAA Engineering Brief 98
  • Surge protection with failure indicator
  • Membrane vent
  • Top sync capability for optional side lights (L-810 variants)
  • GPS antenna included; internal photocell option available
  • Ingress protection: IP66
  • Operating temperature: -40 to +55 °C
  • Weight: 5 kg
  • Dimensions: 220 x 190 x 190 mm
  • Cable entry diameter: 7–13 mm
  • Wire cross-section: up to 6 mm² (power), up to 1.5 mm² (signal)
  • Mounting pattern: 4 holes Ø9 mm, 200 x 140 mm
  • Standards: ICAO Annex 14 Ch.6, FAA AC 150/5345-43J, UK MOD, Transport Canada
  • Certifications: FAA, ETL, DGAC (France)
