3-axis machining center MB-100V

verticalfor large workpiecesdouble-column

Overview

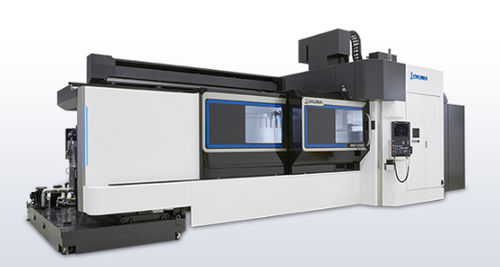

The MB-100V is a double-column vertical machining center engineered for high-precision machining of large workpieces while optimizing factory floor footprint. It features a long-stroke table and solutions for multi-sided machining to reduce setup time and operator workload.

Chip management and reliability
The machine ensures effective chip evacuation to prevent buildup and stoppages. Key design elements include vertical surface covers to limit chip accumulation, wide hinge-type in-machine conveyors for smooth discharge, ATC arm and cam box mounted outside the machining chamber to reduce breakdown risk, and an optional crossrail shower cleaning system to sweep chips from workpieces and the table.

Spindle lineup and machining capability
Complete machining (high-power spindle No. 50, roller bearing specifications):
Spindle speed: 12,000 min-1
Max output: 33/26 kW (10 min/cont)
Max torque: 302/148 N·m (10%ED / cont)
Cutting capacity (Material: S45C, end milling): 704 cm3/min
Example tool (S45C, end milling) — ø20 roughing end mill 7 flutes (carbide): Spindle speed 4,000 min-1, Cutting m/min 251, Feed 9,520 mm/min, Cut width 3.7 mm, Chip length 20 mm

Wide-area spindle No. 40 (option) — for a wide range from steel to aluminum:
Spindle speed: 15,000 min-1
Max output: 26/18.5 kW (10 min/cont)
Max torque: 199/146 N·m (5 min/cont)

High-speed spindle No. 40 (option) — for high-speed machining of aluminum:
Spindle speed: 20,000 min-1
Max output: 30/22 kW (10 min/cont)
Max torque: 57/42 N·m (10 min/cont)

Thermo-Friendly Concept
The MB-100V incorporates Okuma’s Thermo-Friendly Concept, which accepts and compensates for ambient and machine-generated temperature changes so high machining accuracy can be achieved in normal factory environments without special user measures.

Highlighted specs
Table size: 3000 × 1000 mm
Spindle speed: 15,000 / 12,000 min-1
Magazine capacity: 32 tools
Spindle motor: 26/18.5 (35/25) (10 min/cont), 33/26 (44/35) (10 min/cont)
Machine size (W×D×H): 8,995 × 3,095 × 3,500 mm

Specifications

• Model: MB-100V
• Machine structure: Double-column vertical machining center
• Table size: 3000 × 1000 mm (118.11 × 39.37 in)
• Spindle speed options: 12,000 min-1 (No.50), 15,000 min-1 (No.40 wide-area option), 20,000 min-1 (No.40 high-speed option)
• Spindle motor power: up to 33/26 kW (10 min/cont) for No.50; 26/18.5 kW or 30/22 kW for No.40 options
• Maximum torque examples: 302/148 N·m (No.50), 199/146 N·m (No.40 wide-area), 57/42 N·m (No.40 high-speed)
• Cutting capacity (S45C, end milling): 704 cm3/min
• Tool magazine capacity: 32 tools
• Machine overall dimensions (W×D×H): 8,995 × 3,095 × 3,500 mm
• Designed features: smooth chip discharge (vertical surface covers, wide hinge conveyors), ATC arm and cam box outside machining chamber, optional crossrail shower cleaning
• Accuracy concept: Thermo-Friendly Concept to accept/compensate temperature changes
