Test software OptoSCAN

analysismeasurementimage analysis

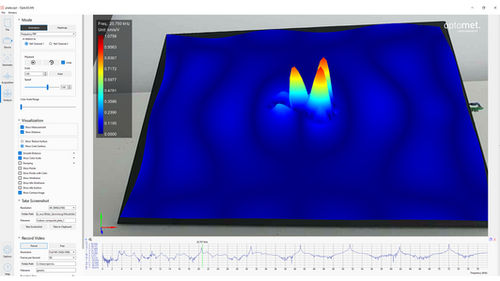

In combination with the Optomet scanning laser Doppler vibrometers, the OptoSCAN software forms a complete solution for imaging vibration measurements. OptoSCAN combines point by point scanning data with geometry information to animate vibrations and surface waves of nearly any test object for design optimization, solving structural problems, validating FE Models and fundamental research. Data is displayed in numerous time and frequency based quantities. Laser Scanning Measurements with OptoSCAN - Simple & Fast OptoSCAN was developed as a tool for the simple and efficient use of the Optomet scanning laser Doppler vibrometer. The modern 64-bit multithreaded software ensures smooth operation even with large amounts of data. A live analysis of the measurement data during the measurement process is also possible. The software can be used with standard PC hardware running Windows 10, therefore data acquisition, analysis and visualization can be easily handled on almost any PC. Vibrometer Control OptoSCAN remote controls all the hardware settings and components of the scanning vibrometer. The video camera and measurement laser are calibrated, decoders and measurement ranges are defined, channels for measuring and reference signals are defined, and the built-in signal generator is controlled. Geometry laser scanning measurement Imaging Vibration Measurement Grids for the measurement points can be created and edited with just a few mouse clicks.
