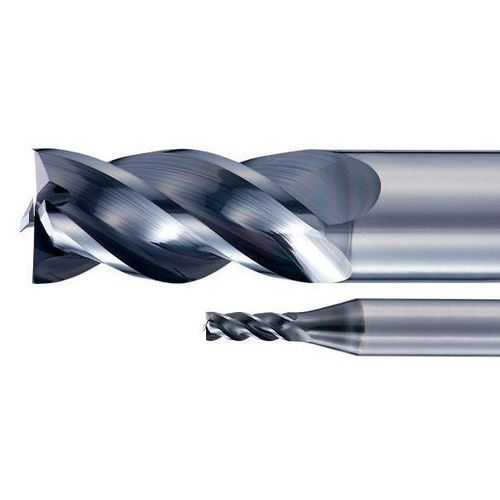

Corner radius milling cutter AE-VMS

coatedcarbidefor metal

Overview
The AE-VMS anti-vibration carbide end mill series is designed for stable, high-precision milling across a broad range of materials, from carbon and alloy steels to titanium and Ni-based heat-resistant alloys. The short type (AE-VMS) combines a stiff body with a unique flute geometry for improved chip evacuation and reduced burr formation. Right-angle and radius specifications extend applicability to corner milling and profile finishing. A low-carbon manufacturing variant (AE-VMS Gtag) is available to reduce CO2 emissions.

Features

• DUARISE coating: enhanced lubricity, friction resistance and high oxidation temperature
• Sharp positive rake angle to lower cutting forces
• New flute geometry improves chip evacuation
• Variable-lead geometry suppresses vibration during cutting
• Right-angle type: enables milling of straight corners without uncut residues
• AE-VMS Gtag (low‑carbon type): reduces CO2 emissions during manufacturing

Applications

• Mild steel
• Carbon steel
• Alloy steel
• Tool steel
• Prehardened/hardened steel
• Stainless steel
• Cast iron
• Copper alloys
• Aluminum alloys
• Titanium alloys
• Heat-resistant alloys / Ni-based alloys

Lineup

• Short: Square Type φ1~φ25; Right Angle Type φ1~φ6; Radius Type φ1×R0.1~φ25×R5
• Low-carbon product AE-VMS Gtag: Square Type φ3-G～φ12-G
• Other variations: stub type (AE-VMSS), long type (AE-VML), deep side milling (AE-VMFE), reinforced cutting edge (AE-VMSX)

Data / Performance
The AE-VMS series demonstrates trouble-free chip evacuation even in high-speed slotting, enabling stable machining and efficient chip control for demanding slot and pocket operations.

Media
Catalogs and product demonstration movies are available for download, including detailed brochures and machining examples.

Specifications / Technical data

• Model name: AE-VMS
• Product type: Anti-vibration short carbide end mill
• Coating: DUARISE (lubricity, friction resistance, high oxidation temperature)
• Geometry: sharp positive rake angle; new flute geometry for chip evacuation; variable-lead geometry for vibration suppression
• Special types: right-angle type for straight corners; radius specifications available
• Material applicability: mild steel, carbon steel, alloy steel, tool steel, prehardened/hardened steel, stainless steel, cast iron, copper alloys, aluminum alloys, titanium alloys, heat-resistant/Ni-based alloys
• Lineup sizes: Square φ1~φ25; Right Angle φ1~φ6; Radius φ1×R0.1~φ25×R5
• AE-VMS Gtag: low-carbon variant, Square φ3-G～φ12-G (reduces CO2 emissions during manufacturing)
