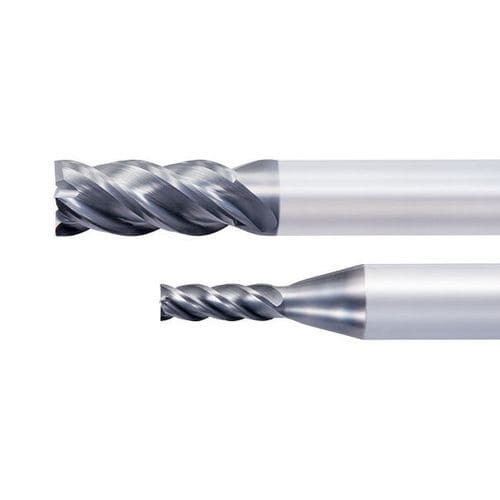

Carbide milling cutter AE-VMSX

PVDfor metalfor titanium alloys

Product Summary Anti-vibration short carbide end mill with reinforced cutting edge. The AE-VMSX is part of the AE-VM anti-vibration carbide end mill series and is optimized for stable, high-speed machining of a wide range of materials. The tool features a reinforced cutting edge with microrelief and edge honing and a DUROREY coating tailored for high-hardness steels (up to 50 HRC).

Features

• DUROREY coating offering high heat resistance and toughness for machining high-hardness steel (up to 50 HRC)
• Reinforced cutting edge with microrelief and edge honing to improve chipping resistance
• Unequal tooth spacing and variable-lead geometry to suppress chatter vibrations
• Web taper (core thickness varies from cutting edge to shank) to significantly increase rigidity

Applications

• Mild steel
• Carbon steel
• Alloy steel
• Tool steel
• Prehardened steel
• Hardened steel
• Stainless steel
• Cast iron
• Copper alloys
• Aluminum alloys
• Titanium alloys
• Heat-resistant/Ni-based alloys

Lineup

• Short: square type φ3–φ12
• AE-VMS short type available in square, right-angle (-RA), and a low-carbon variant (AE-VMS Gtag)

Data / Performance Demonstrated stable machining in demanding materials such as hot die steel (DH31-S); case data and cutting conditions are available for reference to verify performance.

Environmental considerations Edge strengthening with microrelief and honing reduces chipping and stabilizes wear progression in deep cuts, extending tool life and reducing waste.

Media Catalog, technical pamphlet and demonstration videos are available showing AE-VMSX performance.

Technical specifications

• Model: AE-VMSX
• Series: AE-VM anti-vibration carbide end mill series
• Type: Anti-vibration short carbide end mill with reinforced cutting edge
• Coating: DUROREY (optimized for high-hardness steels, up to 50 HRC)
• Cutting edge: Reinforced with microrelief and edge honing for improved chipping resistance
• Tooth geometry: Unequal spacing and variable-lead to suppress chatter
• Core geometry: Web taper (thickness changes from cutting edge to shank) to improve rigidity
• Available variants: Square, right-angle (-RA), AE-VMS Gtag (low-carbon type)
• Available short square sizes: φ3 to φ12
• Material compatibility: Wide range including steels, stainless, titanium, Ni-based and heat-resistant alloys
