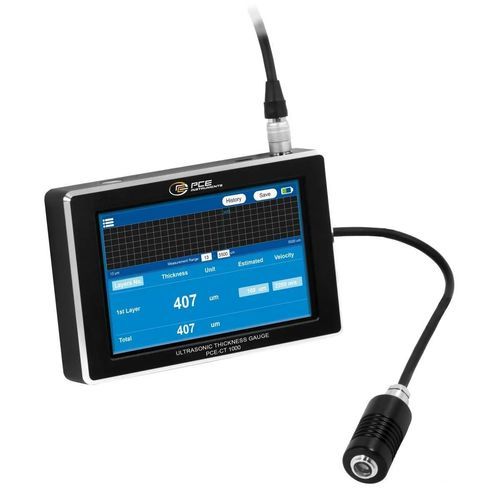

Coating thickness gauge PCE-CT 1000

for non-ferrous materialsglassmulti-material

The Thickness Meter PCE-CT 1000 operates using the pulse-reflection principle of ultrasonic measurement, delivering precise results for a wide range of materials. It is ideal for measuring coating thicknesses on non-metallic substrates such as plastic parts, wood, or glass, as well as for determining the thickness of metallic base materials and coatings.

Main Features

• Multi-layer measurement function enables precise analysis of complex material structures and multi-layer systems.
• IPS color display provides a razor-sharp display of all measured values, parameters, and waveforms.
• Integrated waveform display allows precise control of signal quality, contributing to high measurement accuracy.
• Sonic velocity can be individually adjusted for optimal results on different materials.
• 21 preset materials are available for immediate use.
• Continuous measurement function allows for quick and efficient checking of larger areas.
• Internal memory stores up to 999 data records for easy documentation and later analysis.
• Stored data can be displayed directly on the device and exported in various formats using the supplied PC software.
• Suitable for measuring the thickness of paint coatings and other coating systems on various surfaces, as well as plastics, glass, multi-layer materials, pipe walls, and metallic substrates.

Highlights

• Multi-layer measurements for up to 3 layers
• Waveform display
• Adjustable sonic velocity
• 21 preset materials
• Continuous measurement possible
• Internal memory for 999 data sets
• IPS colour display
• PC software and data export

Delivery Scope

• 1 x PCE-CT 1000 Thickness Meter
• 1 x Ultrasonic sensor
• 1 x Standard plate
• 1 x USB-C cable
• 1 x Transport case
• 1 x Coupling gel
• 1 x PC software (in the download area)

Technical Specifications

• Material thickness
• Measurement range: 300 ... 14800 µm
• Resolution: 1 µm
• Accuracy: ±3% v.Mw. + 3 µm
• Layer thickness
• Measurement range: 13 ... 5500 µm
• Resolution: 1 µm
• Accuracy: ±3% v.Mw. + 3 µm
• Sensor
• Type: Ultrasound
• Frequency: 15 MHz
• Min. measuring surface: 6 millimetres
• Dimension: ø22 x 43 mm
• Cable length: 75 cm
• General technical data
• Display type: IPS
• Display size: 5 Inch
• Display resolution: 800x480 inch
• Storage medium: Internal memory
• Storage capacity: 999 Data records
• Interface: USB-C
• Standard(s): GB/T 37361-2019, JJF1126-2004
• Automatic power-off: 1 ... 30 min. (can be deactivated)
• Adjustable sound velocity: 1000 ... 9999 m/s
• Menu language: English, English (GB), Chinese
• Protection class (device): IP20
• Power supply: 5 V DC
• Connector type: Euro plug
• (Rechargeable) battery: 1 x 3.7 V internal, Lithium-ion polymer battery
• Capacity: 4000 mAh
• Operating conditions: 0 ... 50 °C, 0 ... 80 % RH
• Storage conditions: 0 ... 50 °C, 0 ... 80 % RH
• Dimensions (L x W x H): 97 x 143 x 22 mm
• Weight: 371 g
