Non-ferrous material thickness gauge LM-MCDX-52DP

multi-materialcoatingdigital display

Description

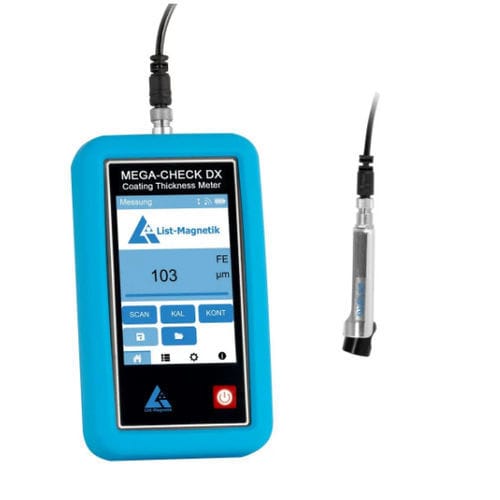

The LM-MCDX-52DP is a handheld coating thickness gauge for industrial inspection, supporting magnetic induction (Fe) and eddy-current (NFe) measurement methods. It accepts a variety of specialized digital probes for access to small openings, thick layers and confined or hard-to-reach points. Digital probe technology digitizes the sensor signal in the probe for interference-free, reproducible results. The instrument includes a color graphic LCD touchscreen (320 × 480 pixels) and a protective silicone frame.

Highlights

• Single measurement, scan measurement and duplex measurement for layered systems
• Color touchscreen (320 × 480 pixels)
• Internal data memory (up to 10,000 measurements)
• USB and wireless interfaces; SCPI remote-control supported
• Dual probe support FE and NFe (supports DX52-D / DX52-DP probes)

Specification (key items)
Layer thickness 2–100 µm — Resolution 0.1 µm — Accuracy ±1 µm. Layer thickness 100–1000 µm — Resolution 1 µm — Accuracy ±1%. Layer thickness 1000–2000 µm — Resolution 10 µm — Accuracy ±3%. Layer thickness 2000–5000 µm — Resolution 10 µm — Accuracy ±5%. Sensor designation: DX52-D. Measurable materials: paint, varnish, plastics, rubber, ceramics, galvanization and electroplated coatings on steel; insulating coatings on non-ferrous metals. Minimum measuring surface: Ø 8 mm; minimum convex radius: 4 mm; minimum concave radius: 38 mm. Probe: dual probe with sliding sleeve and prism, swivelling.

General technical data
Measuring functions: count, MAX, MIN, average, standard deviation. Units: µm, mils. Display: LCD touchscreen — 320 × 480 pixels. Storage: internal memory — 10,000 measurements. Interfaces: USB, wireless; SCPI supported. Standards: ISO 2178, ISO 2360, BS 5411, ASTM. Operating time: approx. 25 h (unlimited with external USB power). Auto power-off: 5–30 min (configurable). Menu languages: German, English (GB/US), Italian, French, Spanish. Protection class: IP64. Power supply: 3 × 1.5 V AA or 5 V via USB. Battery type: 3 × 1.5 V AA (alkaline) — capacity: 3000 mAh. Operating/storage conditions: 0–50 °C, 10–90% RH. Dimensions (L × W × H): 150 × 85 × 35 mm — Weight: 251 g.

Delivery scope

• 1 × LM-MCDX-52DP coating thickness gauge
• 1 × measuring probe DX52-DP
• 1 × probe cable
• 1 × calibration base plate FE+NF
• 2 × calibration foils
• 1 × transport case
• 1 × calibration certificate
• 1 × user manual
• 1 × PC software "Lima Connect" (download)
• 1 × mobile app "Lima Connect" (App Store / Google Play)

Technical characteristics

• Model: LM-MCDX-52DP
• GTIN (EAN): 4262539311040
• Measurement ranges and accuracies as specified above
• Display: 320 × 480 px touchscreen
• Internal memory: 10,000 measurements
• Interfaces: USB, wireless, SCPI
• Power supply: 3 × AA or 5 V USB
• Protection class: IP64
• Dimensions: 150 × 85 × 35 mm — Weight: 251 g
