Semi-rigid videoscope PCE-VE 100N

waterproofwith memory card2-way

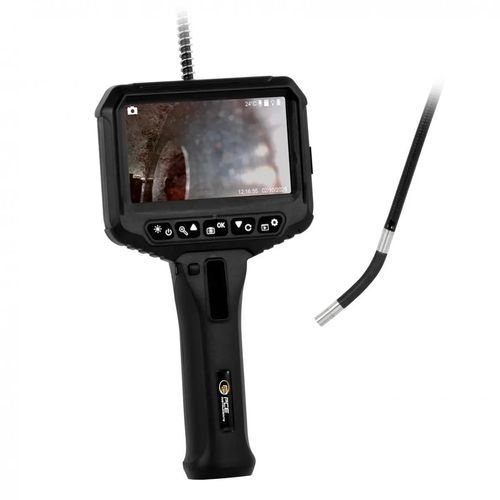

The Inspection Camera PCE-VE 100N is a state-of-the-art video inspection tool designed for professional visual inspections and detailed examinations in hard-to-reach areas. It features an extremely slim design combined with advanced recording functions to ensure maximum precision. The core of the system is a 6.2 mm (0.24 in) camera probe with flexible 2-way articulation, allowing precise control of the tip in two directions for inspecting hidden angles and side walls. Six bright, individually adjustable LEDs are integrated into the probe for optimal illumination in various environments. The camera provides sharp image and video recordings at a maximum resolution of 1920 x 1080 (Full HD), with all files stored on the included 32 GB micro SD card. The robust, 1-meter-long camera cable enables easy insertion into narrow cavities and pipes. Additional features include a 4x digital zoom, image rotation function, and an integrated microphone for audio documentation. The device is battery-operated and comes with a practical carrying case for safe and convenient storage.

Highlights

• 2-way camera probe Ø6.2 mm / 0.24 in
• Image and video recording
• Maximum resolution: 1920 x 1080
• 32 GB micro SD card included
• Integrated microphone in the device

Delivery Scope

• 1 x PCE-VE 100N Inspection Camera
• 1 x Cleaning cloth
• 1 x USB-C cable
• 1 x Carrying case

Technical Specifications

• Type of cable: semi-rigid
• Cable length: 1 m
• Display type: IPS
• Display size: 4.3 inch
• Display resolution: 480 x 272 pixels
• Storage medium: Micro SD card
• Storage capacity: 32 GB
• Interface: USB-C
• Camera resolution (JPG): 640x480 / 1280x720 / 1920x1080
• Operating time: 4 h
• Camera head diameter: 6.2 mm
• Camera probe length: 60 mm
• Camera probe material: Metal
• Camera probe movement: 2-way
• Protection class camera probe: IP67
• Field of vision: 90°
• Depth of field of vision: 15 ... 100 mm
• Bending angle: 210°
• Bending radius: 30 mm
• Image / video format: JPG
• Menu language: German, English (GB), English, Chinese, Japanese, Russian, French, Polish, Spanish, Italian
• Protection class (device): IP42
• Power supply: 5V DC (USB-C)
• (Rechargeable) battery: 1 x 3.7 V internal, Lithium-ion battery
• Capacity: 2200 mAh
• Operating conditions: -10 ... 50 °C, 0 ... 90 % RH
• Storage conditions: -10 ... 50 °C, 0 ... 90 % RH
• Dimensions (L x W x H): 225 x 125 x 50 mm
• Weight: 431 g
