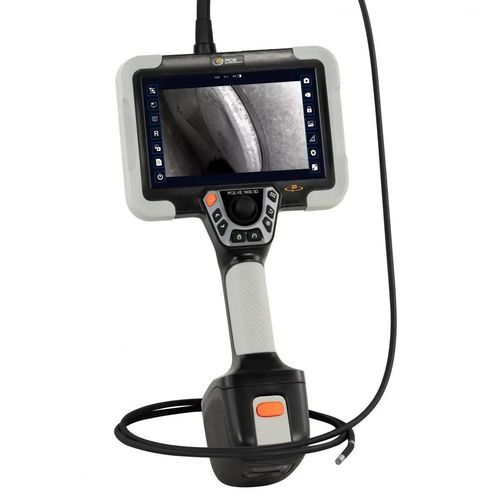

Flexible borescope PCE-VE 1600-3D

for the aeronautical industrysmall-diameterportable

Description
The Inspection Camera is a versatile inspection system for precise visual inspection and 3D measurement in industrial applications. Equipped with a high-resolution image sensor and a 7" IPS touch display (1920 × 1200), it delivers detailed images and real-time video. The 3D measurement function enables measurement of linear distances, areas, circumferences and cross-sections directly on the object. Image resolution: 1280 × 720 px. Standard accuracy: 0.1 mm; minimum accuracy: 0.01 mm. LED lighting brightness adjustable in 5 levels up to 50,000 lx. Supports JPG/PNG images and MP4 video recording and can generate PDF test reports directly on the device. Picture-in-picture, dual camera preview and image rotation enable flexible inspections. Operation via electric joystick and touch display. Internal 16 GB memory and SD card support up to 128 GB. Interfaces: mini-HDMI, USB-A, USB-C, 3.5 mm jack and WLAN (Wi‑Fi). Audio recording function. Typical application areas: aerospace, automotive engineering, energy supply, special inspections, industrial manufacturing and maintenance.

Highlights

• High-precision 3D measurement function
• 7" IPS touch display with 1920 × 1200 pixels
• 8x digital zoom
• Front and side view
• Dual camera preview
• Picture-in-picture mode
• PDF test report generation on the device
• Image and video recording (PNG, MP4)
• Memory: 16 GB internal, SD up to 128 GB
• Interfaces: USB, mini-HDMI, USB-C, Wi‑Fi
• Audio recording function
• Brightness adjustable in 5 levels up to 50,000 lx
• 360° probe control

Delivery Scope

• 1 x PCE-VE 1600-3D Inspection Camera
• 1 x 3 m borescope cable with motor control
• 1 x 64 GB SD card
• 1 x USB 2.0 card reader
• 2 x 7.4 V, 6400 mAh batteries
• 1 x Type-C cable 1 m
• 1 x 12 V, 3 A power supply
• 1 x Shoulder strap
• 1 x Carrying case
• 1 x Operating instructions

Technical specifications

• Cable length: 3 m
• Display type: LCD touchscreen
• Display size: 7 Inch
• Display resolution: 1920 x 1200 pixels
• Storage medium: Internal memory, SD card
• Storage capacity: 16 GB (internal)
• Additional memory: SD card up to 128 GB
• Interfaces: Mini-HDMI, USB-C, USB-A, 3.5 mm jack, WLAN
• Camera resolution: 1,000,000 pixels
• Image / video resolution: 1280 x 720
• Operating time: 4 h
• Camera head diameter: 6 mm
• Camera probe material: Braided tungsten
• Camera probe movement: 360°
• Probe protection class: IP67
• Probe temperature range: -25 ... 80 °C
• Field of view: 120°
• Depth of field: 10 ... 100 mm
• Bending angle: 190°
• Luminous intensity: 50,000 lux
• Image / video format: PNG (images), MP4 (video)
• Menu languages: German, English (GB/US), French, Italian, Russian, Spanish, Polish, Korean, Japanese, Chinese
• Device protection class: IP65
• Power supply: 100 ... 240 V AC (power supply unit)
• Connector type: Euro plug
• Battery: 1 x 7.4 V battery pack, Lithium-ion
• Battery capacity: 6400 mAh
• Operating conditions: -15 ... 50 °C, 0 ... 92 % RH
• Storage conditions: -23 ... 63 °C, 0 ... 92 % RH
• Dimensions (L x W x H): 370 x 195 x 150 mm
• Weight: 1013 g
