Vertical lathe AP series

for aeronautics

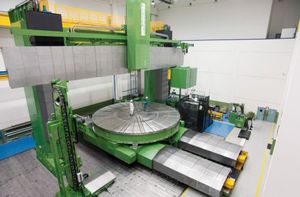

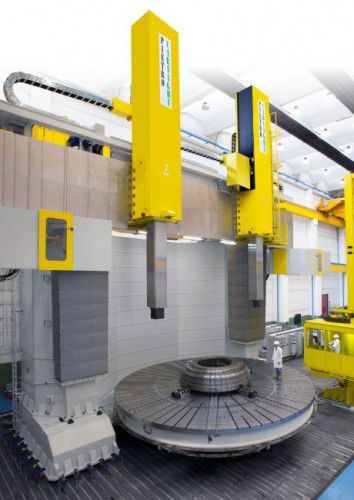

Model AP is characterized by a structure with 2 columns, designed for large parts, up to 14 meters (45.9 ft) of part diameter. The structure of the machine is a “formation” having the columns mounted to the table base, housing the main spindle and gearbox. All these elements are assembled together in order to constitute a tough structure ensuring maximum stability and rigidity, to withstand the most severe cutting conditions. On the front side of the cross rail are two horizontal sliding guides support the vertical ram saddle in its horizontal movement (through hydrostatic pockets). The distance between the superior and the inferior guide way is dimensioned to ensure the maximum cutting performance. All the machine structures are designed with the finite elements analysis methodology (FEM) and the main frames are subjected to thermal stabilization and treatment processes. Table diameter - mm - 6000 - 6500 - 8000 - 8000 - 8000 - 10000 - 10000 Standard weight - t - 200 - 200 - 200 - 200 - 200 - 350 - 350 Max. allowable weight - t - 250 - 250 - 350 - 350 - 350 - 500 - 500 Turning power - kW - 120 - (180) - (300) Turning height: fixed crossrail - mm - 1500 Turning height: movable crossrail - mm - 3000 - 3500 - 4000 - 4500 - 5000 - 6000 - 7000 - 8000 Ram section - mm - (400 x 400) - (500 x 500) - (600 x 600) Ram stroke Z axis - mm - (2000) - (2500) - 3000 - 3500 - 4000 Milling power - kW - 60 / 71 / 100 Max. RPM - rpm - 2500 - 3000 - (6000) Rapid feeds X-Z-axes - mm./min - 15000
