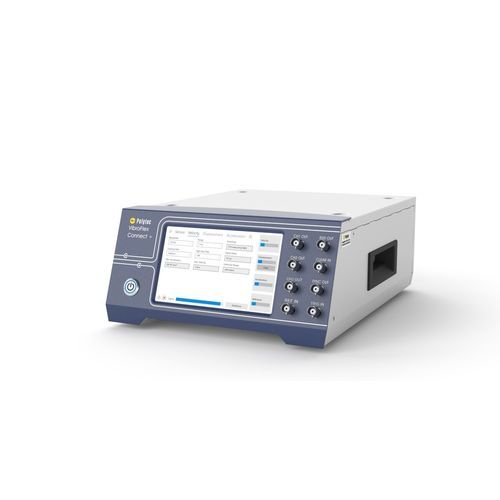

Laser vibration meter VibroFlex Connect+

laser Doppleropticalnon-contact

Overview
Non-contact laser vibrometer front-end and modular core for VibroFlex measurement systems. VibroFlex Connect+ performs FPGA-based signal processing to convert raw Doppler signals into synchronized displacement, velocity and acceleration outputs. The unit supports configurable measurement setups, an optional integrated signal generator and encoder/tacho inputs for run-ups, order and rotational analysis. Control is possible via PC, built-in 7" touchscreen or browser-based WiFi interface.

Highlights

• Non-contact measurement of vibration from DC to 32 MHz.
• Synchronous outputs for displacement, velocity and acceleration.
• Velocity measurement ranges from ±1 mm/s up to ±30 m/s depending on sensor head.
• Phase-synchronous reference channel and encoder/tacho inputs for order analysis.
• VibroLink digital interface (Ethernet/WiFi TCP/IP) and optional LVDS for real-time transfer.

Features

• FPGA-based signal processing: real-time decoding and signal conditioning for low-noise measurement data.
• Modularity: compatible with multiple VibroFlex sensor heads (Neo, Xtra, Xtra Fiber, Compact, QTec, Range, Fiber).
• Remote operation: control via VibSoft, web UI or WiFi; HD+ camera support for laser spot positioning to enable safe remote measurements.
• Signal interfaces: multiple BNC analog outputs (velocity, displacement, acceleration, generator, RSSI, TTL sync), IQ mode and VibroLink for TCP/IP data transfer.

Measurement characteristics (key data)
Max. frequency bandwidth — DC – 32 MHz (Connect+)
Measurands — Velocity, Displacement, Acceleration
Max. vibration velocity — ±30 m/s (Xtra Fiber / QTec / Range); ±12 m/s (Neo / Fiber / Compact)
Velocity ranges — ±1 mm/s to ±30 m/s
Best velocity resolution — 1.5 nm/s/√Hz
Best displacement resolution — < 30 fm/√Hz
Max. acceleration — 100,000 km/s²
Signal processing — FPGA-based

Optics / Measuring laser
Optical design — Compatible with heterodyne interferometer (633 nm) and QTec® multi-path interferometer (1550 nm)
Measuring laser — Wavelength 633 nm (HeNe) or 1550 nm (SWIR), depending on sensor head

Output & connectivity
Analog outputs — 3 BNC connectors for vibration signals (velocity, displacement, acceleration separate); 1 BNC for signal generator (max. 32 MHz); 1 BNC for RSSI out; BNC for sync (TTL); IQ output
Digital output — VibroLink (Ethernet / WiFi, TCP/IP); LVDS (up to 3 MHz, real-time)
PC interface — Ethernet (RJ45 M12) + WiFi (TCP/IP); standalone web interface; device communication software supported
Signal generator — Optional VFX-L-SigGenOut (±5 V @ 50 Ω / ±10 V @ 1 MΩ, max. 32 MHz; sine, chirp, noise)
Reference / inputs — BNC reference channel (synchronous up to 32 MHz); Clear-In; Trigger In; Encoder / tacho input (max. 20,000 rpm)
Display / UI — 7" color touchscreen (interactive)
Software — VibSoft (from v6.4); VibroLink interface; signal generator control; web interface (standalone)

System specifications
Operating temperature — 0 … +40 °C
Protection class — IP20
Power consumption — max. 150 VA (including sensor head)
Weight — 7.3 kg (excluding sensor head)
Dimensions (L x W x H) — 285 x 140 x 383 mm

Compatible sensor heads / typical applications

• VibroFlex Neo — high-resolution tasks and measurements through transparent media (glass, water).
• VibroFlex Xtra / Xtra Fiber — remote or confined-space measurements at short distances.
• VibroFlex Fiber — differential and confined-space measurements.
• VibroFlex Compact — microstructure inspection; optional inline HD+ camera and microscope objectives.
• VibroFlex QTec — optimal optical sensitivity for demanding NDT, biomedical and shaker-control tasks.
• VibroFlex Range — long-range outdoor measurements and structural health monitoring (>500 m).

Technical specifications (summary)

• Bandwidth: DC – 32 MHz
• Measurands: velocity, displacement, acceleration (synchronous outputs)
• Max. vibration velocity: up to ±30 m/s (depending on head)
• Velocity resolution: 1.5 nm/s/√Hz; Displacement resolution: < 30 fm/√Hz
• Max. acceleration: 100,000 km/s²
• Signal processing: FPGA-based
• Analog outputs: multiple BNC (velocity, displacement, acceleration, generator, RSSI, TTL sync)
• Digital interfaces: VibroLink (Ethernet/WiFi TCP/IP), LVDS (real-time)
• PC interfaces: Ethernet (RJ45 M12), WiFi, standalone web UI
• Optional signal generator: up to 32 MHz (sine/chirp/noise)
• Reference channel & encoder/tacho input for run-ups and order analysis
• Display: 7" color touchscreen
• Software: VibSoft (from v6.4) + VibroLink support
• Operating temp: 0…+40 °C; Protection: IP20; Power: max. 150 VA; Weight: 7.3 kg; Dimensions: 285 x 140 x 383 mm
