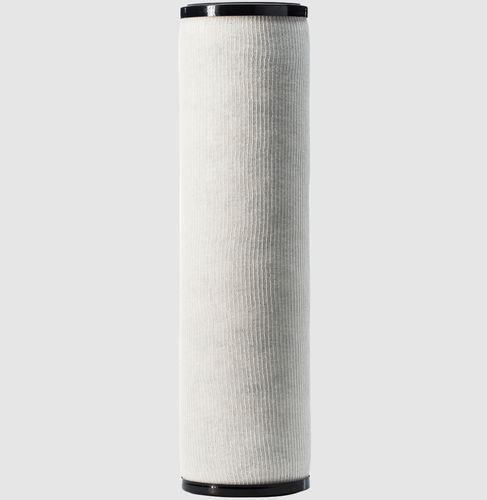

Separator CMHF series

High-Flow Fuel-Water Separation for Category M Aviation Fuels The Facet CMHF Series is engineered for mission-critical aviation fuel systems, delivering superior fuel-water separation, ultra-fine solids removal, and industry-leading flow rates. Key Features • Qualified to EI 1581 (7th Edition) for Category M, Type S-LW applications in horizontal configurations when combined with Facet SMHF separator cartridges in Facet coalescer-separator housings • Up to 3x more dirt-holding capacity than Type S-M options, extending service intervals and reducing maintenance costs • Optimized media geometry and balanced cartridge design maximizes throughput while minimizing pressure drop • Multi-layered media captures ultra-fine solids and coalesces water for rapid separation, protecting downstream equipment • Permanently affixed gasket maintains positive seal through installation and changeout cycles Specifications • Outside Diameter: 6" (152 mm) • Inside Diameter: 3.5" (89 mm) • Max Operating Temperature: 240 ºF (115 ºC) • Max Differential Pressure: 75 psi (5.17 bar) • pH Range: 5 to 9 • Flow Direction: Inside to Out • All Materials of Construction are Compatible with EI 1589 Mounting Styles Self-Centering Rod Mount: Epoxy-coated end caps designed for structural rigidity and corrosion resistance Screw Base Mount: Injection-molded, glass-filled nylon end caps provide superior strength and ease of maintenance— uniform threads, no material shrinkage, and no thread galling
