Aircraft monitoring system R2S

Product overview

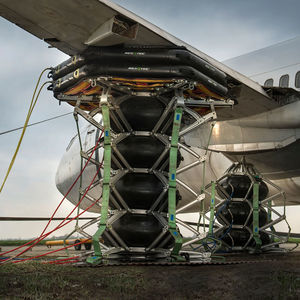

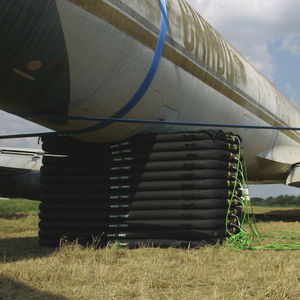

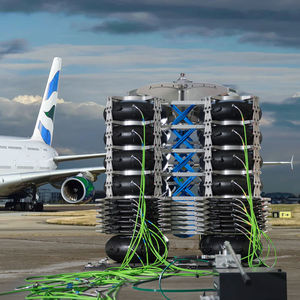

The R2S Digital Load Monitoring System is a wireless monitoring solution designed for aircraft recovery operations. It measures and records pressure in top lifting bags and provides real-time load data to the recovery manager via a portable monitoring unit. Available in Q6, Q8 and Q10 configurations to support up to 6, 8 or 10 wireless sensors, the system combines scalable connectivity, intuitive controls and a rugged carrying case for rapid deployment at airports.

Key benefits

• Real-time monitoring of lifting-bag pressure for controlled, safe aircraft recovery.
• Wireless sensors measure and record pressure at each top lifting bag, transmitting continuously to the monitoring unit.
• Available models Q6, Q8 and Q10 to match the number of sensors required on site.
• Integrated carrying case with rechargeable battery for fast, self-contained deployment.
• Configurable load limits with audible and visual alarms to prevent overloading and potential structural damage.
• Built-in WiFi enables real-time viewing across the incident site on PC, tablet or smartphone.
• Data recording capability supports post-incident review and reporting.

Features

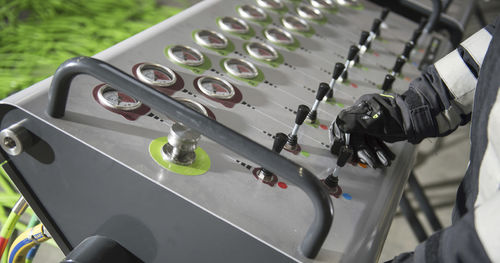

• Portable monitoring unit with integrated carrying case and rechargeable battery.
• Wireless pressure sensors for continuous measurement at each lifting bag.
• Configurable audio and visual alarms tied to settable load limits.
• Local data recording for reporting and post-incident analysis.
• Built-in WiFi and dedicated app for iOS and Android; touch-screen device included for on-site control.

Technical summary

• Q6 — Up to 6 sensors | Power: built-in rechargeable battery | Wireless range: 80 m | Transport: integrated carrying case | Data viewing: PC, tablet, phone; app for iOS and Android
• Q8 — Up to 8 sensors | Power: built-in rechargeable battery | Wireless range: 80 m | Transport: integrated carrying case | Data viewing: PC, tablet, phone; app for iOS and Android
• Q10 — Up to 10 sensors | Power: built-in rechargeable battery | Wireless range: 80 m | Transport: integrated carrying case | Data viewing: PC, tablet, phone; app for iOS and Android

Technical specifications

• Models: Q6, Q8, Q10 (supports up to 6, 8 or 10 wireless sensors).
• Sensor type: wireless pressure sensors for lifting bags (continuous tracking and transmission).
• Power supply: built-in rechargeable battery for monitoring unit and sensors.
• Wireless range: approximately 80 m between sensors and monitoring unit.
• Transport & storage: integrated carrying case for unit and accessories.
• Data transfer & viewing: real-time viewing on PC, tablet and smartphone; app for iOS and Android; onboard data recording.
• Alarms: configurable load limits with audio and visual alerts.
• Application: designed for aircraft recovery operations (commercial, military or private aircraft).
