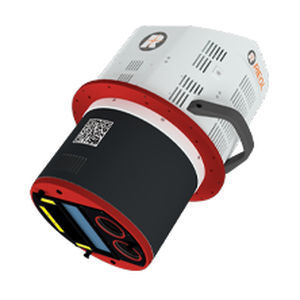

Non-contact laser scanner VQ-1460
for aeronauticsmeasurementairborne

non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
non-contact laser scanner
Add to favorites
Compare this product


Characteristics

Type
non-contact
Other characteristics
for aeronautics, measurement, airborne
Distance range

Min.: 0 m
(0'00" )

Max.: 7,900 m
(25918'07" )

Accuracy

20 mm
(1 in)

Description

The VQ-1460 is one of RIEGL‘s latest high-end airborne laser scanning systems, suitable for a wide field of applications – from high-point density wide area mapping to ultra-high resolution city mapping or corridor mapping. The unique design features pulse repetition rates from 4.4 MHz, resulting in a regular point spacing and an almost constant point density distribution on the ground. The system features large measurement distances of up to 2300 m at maximum PRR, and 5400 m at minimum PRR, for a target reflectance of 20 %, resulting in an unsurpassed high efficiency in area acquisition of e.g. up to 615 km²/h at 150 knots flying speed for an average of 8 points per square meter. A newly designed optical fronted significantly minimizes for near-range echoes due to atmospheric clutter, resulting in clean point clouds. Online-Waveform processing and full-waveform processing capabilities are a matter of course for this class of equipment. Scan data and camera images are stored on removable hard disks that can be accessed directly on the device, eliminating the need for an external data recorder. A high-performance IMU/GNSS unit and one or two optional high-resolution RGB/NIR cameras are seamlessly integrated in the compact and user-friendly designed housing. The standardized mounting flange fits typical hatches or gyro-stabilized leveling mounts for maintaining optimum point distribution. Main Features high pulse repetition rates of up to 4.4 MHz up to 2.93 million measurements per second on the ground best point distribution for optimum target resolution excellent atmospheric clutter suppression multiple target capability
