Goniometer for aerospace applications 95-92052-0003

for high-precision angular alignment

Overview

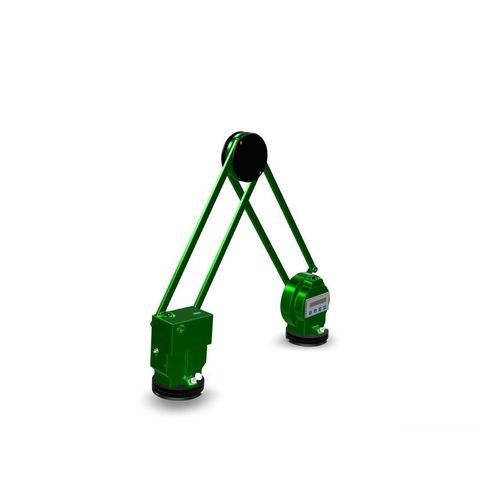

Designed and manufactured by Setroson for aircraft maintenance operations. The protractor allows operators to measure angles between two aircraft planes or surfaces, and is particularly useful in confined or hard-to-access areas such as flaps and the rudder. Measurement accuracy: 0.1°.

Product code
95-92052-0003 / STS050602

Technical table
Dimensions: L: 627 mm; H: 303 mm; W: 497 mm
Weight: 13 Kg
Material: Aluminium 7075, anodised and tinted in NATO green

Applications

• Measuring angles between aircraft planes or surfaces
• Maintenance and inspection of control surfaces (flaps, rudder)
• Use in confined or hard-to-access zones during line and base maintenance

Characteristics / technical specifications

• Function: Measures angles between two aircraft planes or surfaces
• Measurement accuracy: 0.1° (one-tenth of a degree)
• Dimensions: L 627 mm; H 303 mm; W 497 mm
• Weight: 13 Kg
• Material: Aluminium 7075, anodised and NATO green tinted
• Manufacturer: Setroson
• Product codes: 95-92052-0003 / STS050602
• 3D model: Available on the product page
