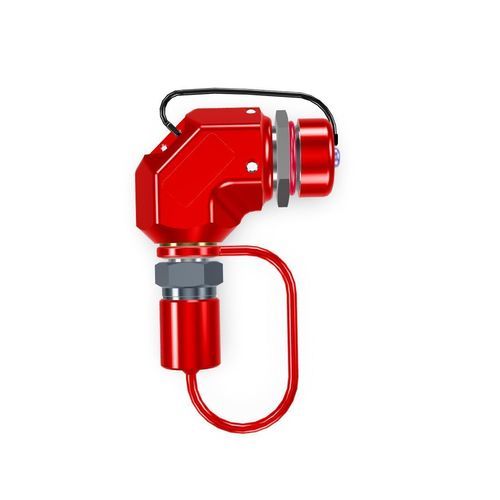

Fuel fittings A330-92173-0001

for hydrocarbonsstainless steelaluminum

Overview
Adapter – Vacuum Relief Valve Housing designed and manufactured by Setroson for Airbus D&S programmes. Connects to the Fuel Trolley for Leakage Test (P/N: A330-92048-0001) to relieve pressure on the vacuum relief valve when the boom is not installed.

Identification

• Part number: A330-92173-0001
• Internal code: STS220101
• Manufacturer: Setroson

Table – Basic data
Dimensions: L 232 mm; H 111 mm; W 192 mm
Weight: 2.6 kg
Materials: Aluminium, stainless steel, plastic
Applicable programmes: Airbus D&S / A330 MRTT equipment

Technical characteristics

• Function: Relieves pressure on the vacuum relief valve when the boom is not installed (used with Fuel Trolley for Leakage Test P/N A330-92048-0001)
• Compatibility: Connects to Fuel Trolley for Leakage Test (P/N A330-92048-0001)
• Dimensions & weight: L 232 mm; H 111 mm; W 192 mm; 2.6 kg
• Materials: Aluminium, stainless steel and plastic for aerospace application
• Manufacturer details: Setroson — designed and manufactured for Airbus D&S programmes
• Application notes: Intended for ground test operations related to fuel system leakage checks on A330 MRTT
