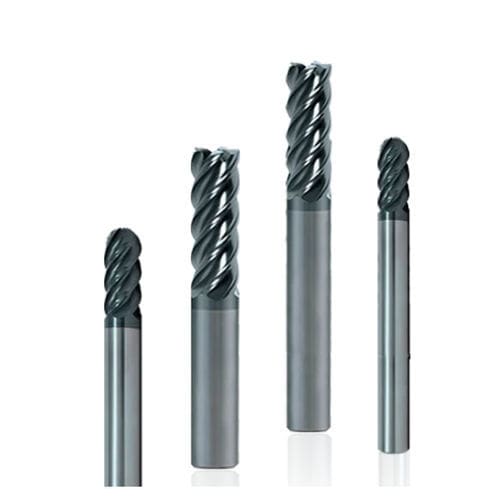

V-Carb end mills set the standard for peak finish quality. These five-flute, unequal helix tools feature unequal indexing and an ideal rake and relief combination for unmatched finishing capability. Available with a full selection of corner radii and ball nose configurations, the V-Carb portfolio is well equipped to handle your complex finishing requirements.
FEATURES & BENEFITS
Available in standard and metric sizes
Square, corner radius, ball nose designs
Ti-NAMITE-A coating for excellent thermal and chemical resistance in dry cutting situations. TA has a high hardness and offers great protection against abrasive wear and erosion.
PRODUCT DETAILS
Length of Cut - 1/4"-2 5/8" / 50,0-75,0
Shank Diameter - 1/8"1" / 6,0-20,0
Corner Radius - .010-.060 / 0,5-6,0
Coating(s) - Ti-NAMITE-A
Available Features - Weldon Flat
MATERIAL APPLICATIONS
STEEL ≤ 45 HRc
STAINLESS STEEL ≤ 45HRc
CAST IRON ≤ 45HRc
HIGH TEMP ALLOYS
TITANIUM ALLOYS ≤ 45 HRc
HARDENED STEELS < 45 HRc
INDUSTRY APPLICATIONS
Aerospace
Medical
Power Generation
Automotive
Mold & Die
Casting & Foundries
General Engineering
