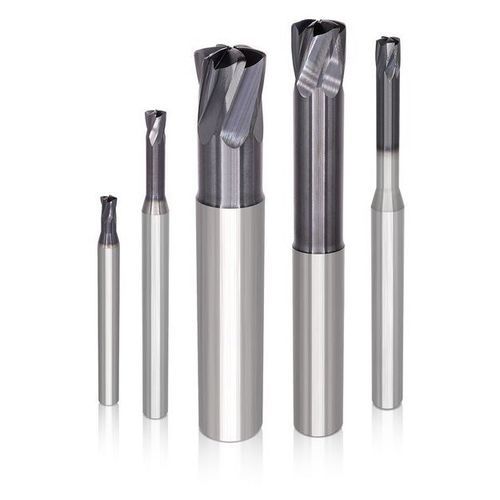

Coated milling cutter Hi-Per Feed MS

carbidePVDfor titanium alloys

Overview
The Hi-Per Feed MS is engineered for high-feed milling of stainless steels and high-temperature alloys. Combining advanced high-feed geometry, premium carbide substrate and Ti‑NAMITE‑A PVD coating, it maximizes metal removal rates while preserving process stability in demanding production environments.

Key Features

• Optimized end gashing — promotes efficient chip evacuation during aggressive high-feed milling.
• Central coolant hole — delivers coolant directly to the cutting zone for improved heat control and chip evacuation.
• High-feed end geometry — designed for shallow depths of cut at high feed rates to increase metal removal efficiency.
• Dual axial radius cutting edge — produces axial chip thinning that redirects cutting forces into the spindle to improve stability and reduce deflection.
• Ti‑NAMITE‑A coating — advanced PVD coating reduces friction, enhances wear resistance and minimizes built‑up edge when machining stainless steels and high-temp alloys.

Series Details

• Cutting diameter: 1/8" - 1/2" | 2,0 mm - 12,0 mm
• Length of cut: 0.007" - 0.026" | 0,10 mm - 0,62 mm
• Overall length: 2-1/2" - 5" | 57 mm - 125 mm
• Shank diameter: 1/4" - 1/2" | 6,0 mm - 12,0 mm
• Theoretical radius: 0.017" - 0.067" | 0,27 mm - 1,60 mm
• Coating: Ti‑NAMITE‑A
• Special options: 2xD, 4xD, 6xD reaches; standard and central coolant options vary by diameter.

Primary Material Applications

• Stainless steel ≤ 35 HRc
• High temp alloys ≤ 43 HRc
• Titanium alloys ≤ 45 HRc

Industry Applications

• Aerospace
• Medical
• Power generation
• Automotive
• Mold & die
• Casting & foundries
• General engineering

Performance / Test Info
Internal wear comparison tests show improved wear resistance and extended tool life versus standard end mills under comparable high-feed conditions.

Technical specifications

• Series name: Hi-Per Feed MS
• Geometry: High-feed end geometry with dual axial radius cutting edge
• Coating: Ti‑NAMITE‑A (advanced PVD)
• Coolant: Central coolant hole option available; standard coolant options vary by diameter
• Cutting diameter range: 1/8" - 1/2" (2,0 mm - 12,0 mm)
• Length of cut: 0.007" - 0.026" (0,10 mm - 0,62 mm)
• Overall length: 2-1/2" - 5" (57 mm - 125 mm)
• Shank diameter: 1/4" - 1/2" (6,0 mm - 12,0 mm)
• Theoretical radius: 0.017" - 0.067" (0,27 mm - 1,60 mm)
• Special reach lengths: 2xD, 4xD, 6xD
• Target materials and hardness limits: Stainless steel ≤ 35 HRc; High temp alloys ≤ 43 HRc; Titanium alloys ≤ 45 HRc
