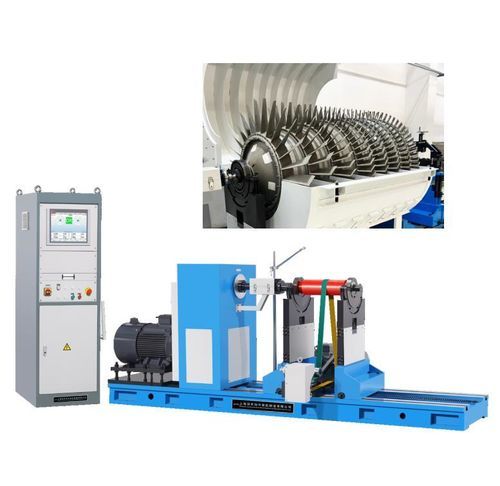

Horizontal balancing machine PHS-1000ZW

electricfor aeronauticsautomatic

Application This machine is widely used in the unbalance detection of mechanical rotating parts of medium-sized motors, rubber rollers, water pumps, centrifuges, fans, crankshafts etc. Feature Adopt the universal joint/belt drive dual drive mode, the universal joint drive can transmit more power and run more smoothly. The belt drive ensures the balancing quality and precision of the workpiece, and has the characteristics of convenient loading and unloading, fast start-up and high work efficiency. Applicable to medium workpieces Technical data at a glance - Mass Scope of Workpiece(kg): 1000, 2000, 3000, 5000 - Max Diameter of Workpiece(mm): Φ1600, Φ1900, Φ2100, Φ2400 - Distance Between Two Support Bearings(mm): Min 60, Min 60, Min 60, Min 320 - Journal Diameter Scope of Workpiece(mm): Φ25~120, Φ25~120, Φ25~120, Φ40~380 - Max Distance between Driving Flange and Right Bearing Support (mm): 1600, 1900, 1900, 2500 - Rotational Speed of the Main Axis(r/min): 600,1095, 485,818, 133,255,396, 634,970 - Motor Power (kw): 4, 7.5, 7.5, 15 - Torque of Universal Joint Shaft(N·m): 250, 300, 700, 1250 - Length of Bed (mm): 2500, 3000, 3000, 4000 - Min Achievable Residual Unbalance Amount(emar): ≤0.5g· mm/kg 1) Frequency conversion Stepless speed regulation - Mass Scope of Workpiece: 1000-5000 kg - Max Diameter of Workpiece: Φ1600-Φ2400 mm - Distance Between Two Support Bearings: Min 60-320 mm - Journal Diameter Scope of Workpiece: Φ25~120 to Φ40~380 mm - Max Distance between Driving Flange and Right Bearing Support: 1600-2500 mm - Rotational Speed of the Main Axis: 133-1095 r/min - Motor Power: 4-15 kw - Torque of Universal Joint Shaft: 250-1250 N·m - Length of Bed: 2500-4000 mm - Min Achievable Residual Unbalance Amount: ≤0.5g· mm/kg
