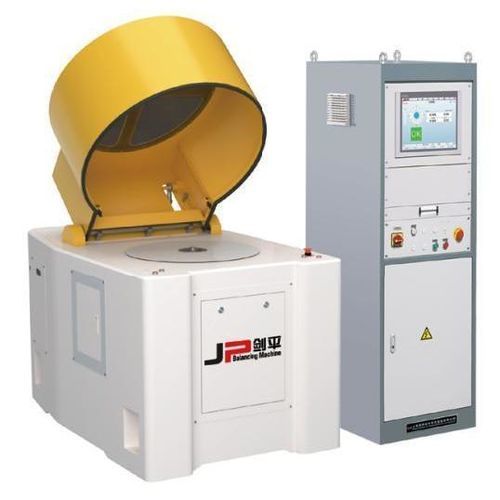

Vertical balancing machine PHLD-150

mechanicalfor aeronauticsautomatic

Application This machine is suitable for unbalance detection of disc rotors without journal, such as clutch pressure plate, brake disc, brake drum, pulley, saw blade, fan rotor, chuck, flange etc. Features - The brackets designed by Jianping can transmit mechanical force, which is firm and reliable, with small vibration damping and good rigidity. - High sensitivity sensor, good linearity, durable and reliable. - Calibration measurement principle, allowing high initial unbalance. - Equipped with a special fixture, more convenient for clamping. - Electronic measurement system, friendly HMI, powerful functions. - The weight removal device can be equipped as customer’s request. Technical data at a glance - Max Mass of Workpiece (kg): 0.5, 3.5, 5, 5, 5, 5, 16, 35, 35, 35, 35 - Max Diameter of Workpiece (mm): Φ150, Φ200, 600, Φ350-500, Φ350-500, Φ500, 510, Φ400, Φ400, Φ580, Φ180~450 - Height of workpiece(mm): 50, 120, 120, 120, 130, 120, 160, 200, 220, 185, 200 - Spindle speed(r/min): 3600, 3600, 900, 1200, 1200, 1200, 900, 800, 800/1400, 400~1200, 800~850 - Motor power(kw): 0.2/0.1, 0.2/0.4, 0.18, 0.37, 0.37, 0.37, 1.5, 1.5, 1.5/3, 1.5, 1.5 - Min Achievable Residual Unbalance Amount (emar): 0.5g · mm/kg, 0.5g · mm/kg, 2g · mm/kg, 2g · mm/kg, 1g · mm/kg, 2g · mm/kg, 1g · mm/kg, 2g · mm/kg, 1g · mm/kg, 2g · mm/kg, 2g · mm/kg - Applicable to medium workpieces - Applicable to large workpieces Dual-Plane Vertical Balancing Machines - DC Brushless Servo Motor
