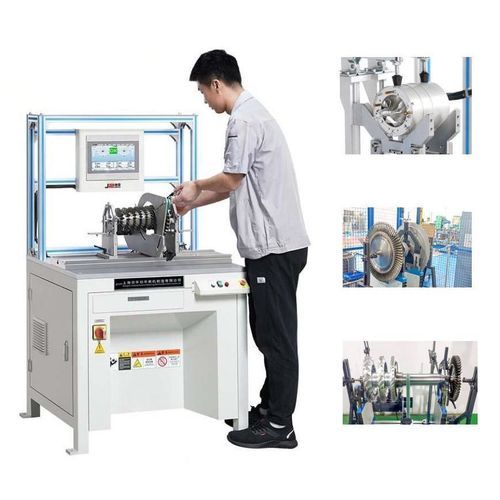

Horizontal balancing machine PHQ series

belt-drivenfor aeronauticshigh-precision

Application: Used in the dynamic unbalance detection of various small power tool rotors, permanent magnet motor rotors, spinning cups, couplings, generator rotors, combing rollers, shafts, turbocharger rotors and other rotating workpieces. Features: This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition & removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable. Applicable to small workpieces Technical data at a glance - PHQ-1.6/5 - PHQ-1.6A/5A - PHQ-G5 - PHA-5 - PHQ-16A - Max Mass of Workpiece(kg): 1.6/5 - Max Diameter of Workpiece (mm): Φ300 - Distance Between Two Support Bearings (mm): 15~500 - Journal Diameter Scope of Workpiece (mm): Φ 3~40(120°) - Diameter Scope of Driving Belt (mm): Φ20~85 - Rotational Speed when the Diameter of Driving Belt is 100mm (r/min): ~1470 - Motor Power (kw): 0.2DC - Min Achievable Residual Unbalance Amount (emar): ≤0.15g· mm/kg 1) Stepless speed regulation 2) Frequency conversion 3) Can add to 75-180 4) Can add to 120-240 5) Can add to 75-140 - Max Mass of Workpiece: 1.6/5 kg - Max Diameter of Workpiece: Φ300 mm - Distance Between Two Support Bearings: 15~500 mm - Journal Diameter Scope of Workpiece: Φ 3~40 mm - Diameter Scope of Driving Belt: Φ20~85 mm - Rotational Speed: ~1470 r/min - Motor Power: 0.2DC kw - Min Achievable Residual Unbalance Amount: ≤0.15g· mm/kg
