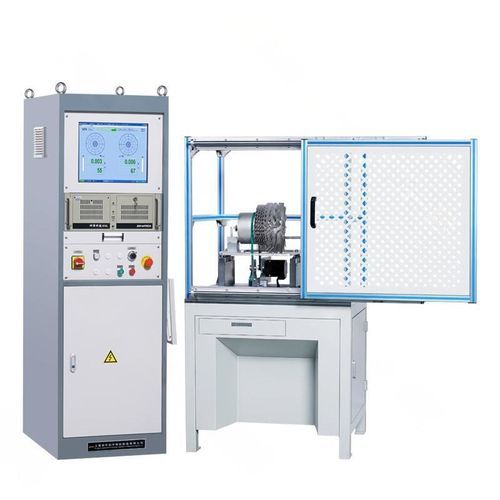

Horizontal balancing machine PRF-30

electricbelt-drivenmodular

Application It is suitable for dynamic balance detection of turbo molecular pumps. Feature - Convenient for loading & unloading - Soft-bearing brackets system designed by Jianping - Modular design, applied to the balancing of turbo molecular pump impeller Technical data at a glance PRF-16 PRF-30 PRF-50 Max Mass of Workpiece (kg) 16 30 50 Max Diameter of Workpiece (mm) Φ300 Φ350 Φ550 Distance Between Two Support Bearings (mm) 350 350 650 Diameter Scope of Driving Belt (mm) 100-200 100-300 100-350 Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) 900 800 600 Motor Power (kw) 0.3DC 0.45DC 0.75DC Min Achievable Residual Unbalance Amount (emar) ≤0.15g·mm/kg - Application: Dynamic balance detection for turbo molecular pumps - Convenient loading/unloading - Soft-bearing brackets system - Modular design for impeller balancing - Max workpiece mass: 16/30/50 kg - Max workpiece diameter: 300/350/550 mm - Distance between support bearings: 350/350/650 mm - Driving belt diameter scope: 100-200/100-300/100-350 mm - Rotational speed (100mm belt): 900/800/600 r/min - Motor power: 0.3DC/0.45DC/0.75DC kW - Min residual unbalance: ≤0.15g·mm/kg
