Horizontal balancing machine PHQ

electricfor aeronautics

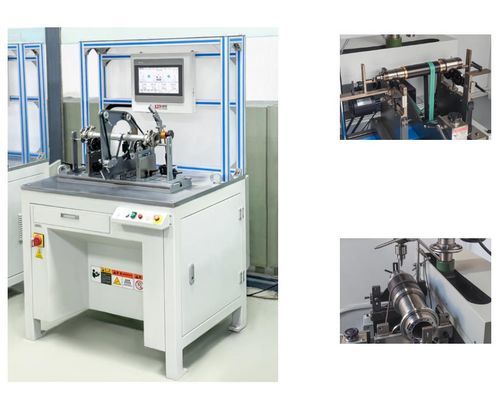

Application Used in the dynamic unbalance detection of various small power tool rotors, permanent magnet motor rotors, spinning cups, couplings, generator rotors, combing rollers, shafts, turbocharger rotors and other rotating workpieces. Features This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition & removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable. Applicable to small workpieces Technical data at a glance PHQ-1.6/5 PHQ-1.6A/5A PHQ-G5 PHA-5 PHQ-16A Max Mass of Workpiece(kg) 1.6/5 1.6/5 5 5 16 Max Diameter of Workpiece (mm) Φ300 Φ300 Φ300 400 Φ300 Distance Between Two Support Bearings (mm) 15~500 15~500 15~500 15~500 15~500 Journal Diameter Scope of Workpiece (mm) Φ 3~40(120°) Φ 3~40 Φ 3~40 Φ 3~40 Φ 3~40 Diameter Scope of Driving Belt (mm) Φ20~85 Φ15~150 Φ20~85 Φ15~150 Φ15~150 Rotational Speed when the Diameter of Driving Belt is 100mm (r/min) ~1470 ~1470 ~1470 0~2000 ~1470 Motor Power (kw) 0.2DC 0.2DC 0.2DC 0.2DC 0.2DC Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg 1) Stepless speed regulation 2) Frequency conversion 3) Can add to 75-180 4) Can add to 120-240 5) Can add to 75-140 - Application: Dynamic unbalance detection for small rotors and rotating workpieces - Measurement: Dynamic and static balancing, up to 10 bearing modes - Customization: Weight addition/removal, CW/CCW rotation, calibration coefficient combinations - System: Automatic sensitivity adjustment, dual filtering, data compression - Technical Data: Max mass 1.6-16 kg, Max diameter 300-400 mm, Journal diameter 3-40 mm, Motor power 0.2DC, Residual unbalance ≤0.15g·mm/kg
