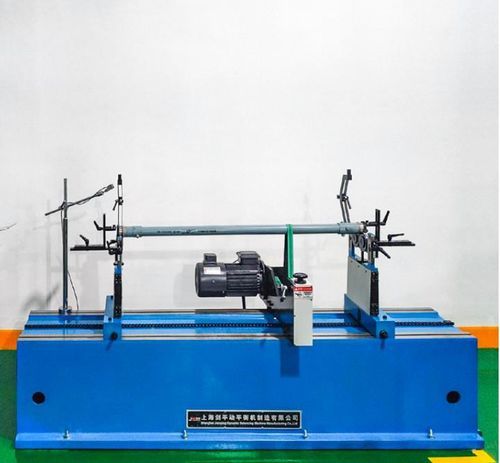

Horizontal balancing machine PHQ series

electricautomatic

Application Used for the unbalance correction of rotating workpieces such as various small and medium-sized motor rotors, impellers, crankshafts, rollers and shafts etc. Feature This machine adopts Jianping’s electronic measurement system, with various measurement methods, dynamic and static balancing, bearing modes are up to 10 kinds, weight addition & removal, CW and CCW rotation can be flexibly customized. It adopts multiple calibration coefficient combinations, automatically adjusts system sensitivity, and shifts without jumps, software and hardware dual filtering, data compression, the measurement is more stable. Applicable to medium workpieces Technical data at a glance PHQ-50, PHQ-160H, PHQ-160Z, PHQ-C160H, PHQ-300H, PHQ-500H Max Mass of Workpiece (kg): 50, 160, 160, 160, 300, 500 Max Diameter of Workpiece (mm): Φ700, Φ1000, Φ300, 400, Φ1220, Φ1500 Distance Between Two Support Bearings (mm): 80~700, 130~1270 Journal Diameter Scope of Workpiece (mm): Φ8~75, Φ15~75, Φ200-300, Φ200 Diameter Scope of Driving Belt (mm): Φ18~200, Φmax400, Φmax300, Φmax500, Φmax600 Rotational Speed when the Diameter of Driving Belt is 100mm (r/min): 700,1050, ~1176, 7500 Motor Power (kw): 0.75, 1.5, 4, 2.2 Length of Bed (mm): 1500 Min Achievable Residual Unbalance Amount (emar): ≤0.15g·mm/kg Notes: 1) Stepless speed regulation 2) Frequency conversion 3) Can add to 75-180 4) Can add to 120-240 5) Can add to 75-140 Technical Specifications / Features: - Electronic measurement system with multiple measurement methods - Dynamic and static balancing - Up to 10 bearing modes - Customizable CW and CCW rotation - Multiple calibration coefficient combinations - Automatic system sensitivity adjustment - Software and hardware dual filtering - Data compression for stable measurement - Applicable for small and medium-sized rotors, impellers, crankshafts, rollers, and shafts
