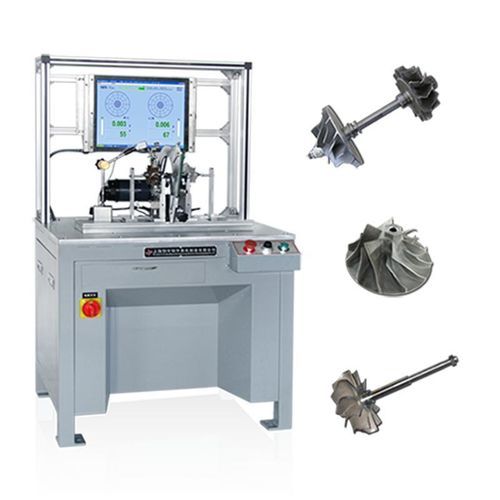

Horizontal balancing machine PHY-5

electricbelt-drivenautomatic

Application
This machine is designed for dynamic unbalance detection and correction of turbocharger rotors (impellers, compressors, turbines).

• Balancing machines for turbocharger impellers
• Balancing machines for turbocharger compressors
• Balancing machines for turbocharger turbines
• Auto-positioning bed and large tool carriage structure
• Dedicated bracket driven by 230W nylon-belt variable-speed motor

Features

• Belt drive with hard-bearing brackets for stable support
• Windows 7/10 control system with 17" LCD display
• Easy installation and removal; quick startup
• Stepless (continuous) speed regulation

Technical data at a glance

• Models: PHY-1.6 | PHY-5 | PHY-16
• Max mass of workpiece (kg): 1.6 | 5 | 16
• Max diameter of workpiece (mm): Φ00 | Φ300 | Φ300
• Distance between two support bearings (mm): 60–400
• Journal diameter scope of workpiece (mm): Φ5–40
• Diameter scope of driving belt (mm): Φ15–150
• Rotational speed when driving belt Ø 100 mm (r/min): 1470
• Motor power: 0.2 kW (DC)
• Min achievable residual unbalance amount (emar): 0.15 g·mm/kg

Specifications

• Reference model: PHY-5
• Max mass of workpiece (PHY-5): 5 kg
• Max diameter of workpiece (PHY-5): Φ300 mm
• Distance between two support bearings: 60–400 mm
• Journal diameter scope of workpiece: Φ5–40 mm
• Diameter scope of driving belt: Φ15–150 mm
• Rotational speed (driving belt Ø100 mm): 1470 r/min (stepless regulation)
• Motor power: 0.2 kW (DC)
• Min achievable residual unbalance (emar): 0.15 g·mm/kg
• Operating system / display: Windows 7/10 with 17" LCD screen
• Drive: belt drive with hard-bearing brackets
• Special features: auto-positioning bed; large tool carriage structure; dedicated bracket driven by 230W nylon-belt variable-speed motor
