- Horizontal balancing machine
- Shanghai Jianping Dynamic Balancing Machine

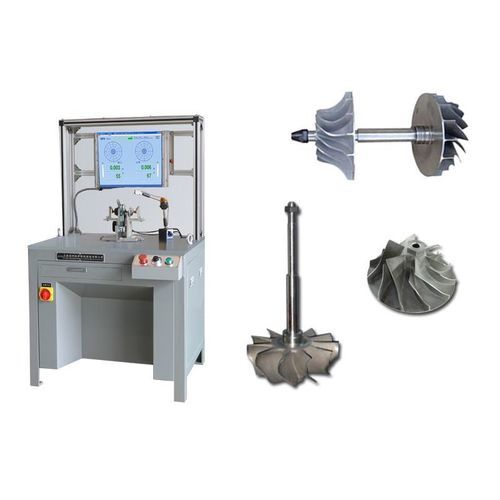

Horizontal balancing machine PRY-0.5electricbelt-drivenhigh-precision
Add to favorites
Compare this product
Characteristics
- Orientation
- horizontal
- Energy
- electric, belt-driven
- Other characteristics
- high-precision
- Rotational speed
1,470 rpm
(9,236.2824 rad.min-1)- Weight on rotor
0.5 kg
(1.1 lb)
Description
Application
This machine is designed for dynamic unbalance measurement and correction of automotive turbocharger rotors. It is suitable for production inspection, repair shops and R&D testing, and supports a range of rotor sizes within the specified limits.
Features
Technical data at a glance
This machine is designed for dynamic unbalance measurement and correction of automotive turbocharger rotors. It is suitable for production inspection, repair shops and R&D testing, and supports a range of rotor sizes within the specified limits.
Features
- Belt drive with hard-bearing brackets for stable rotation
- Windows XP control system with 17" LCD for operator interface
- Easy installation and removal of workpiece; fast startup
- Stepless speed regulation for precise balancing
Technical data at a glance
- Model: PRY-0.5
- Max mass of workpiece: 0.5 kg
- Max diameter (outside/inside bracket): Φ65 mm
- Distance between support bearings: 30–115 mm
- Journal diameter scope: Φ5–15 mm
- Driving belt diameter scope: Φ5–15 mm
- Rotational speed (belt Ø100 mm): 1470 r/min (stepless regulation)
- Motor power: 0.2 kW DC
- Min achievable residual unbalance (emar): 0.15 g·mm/kg
